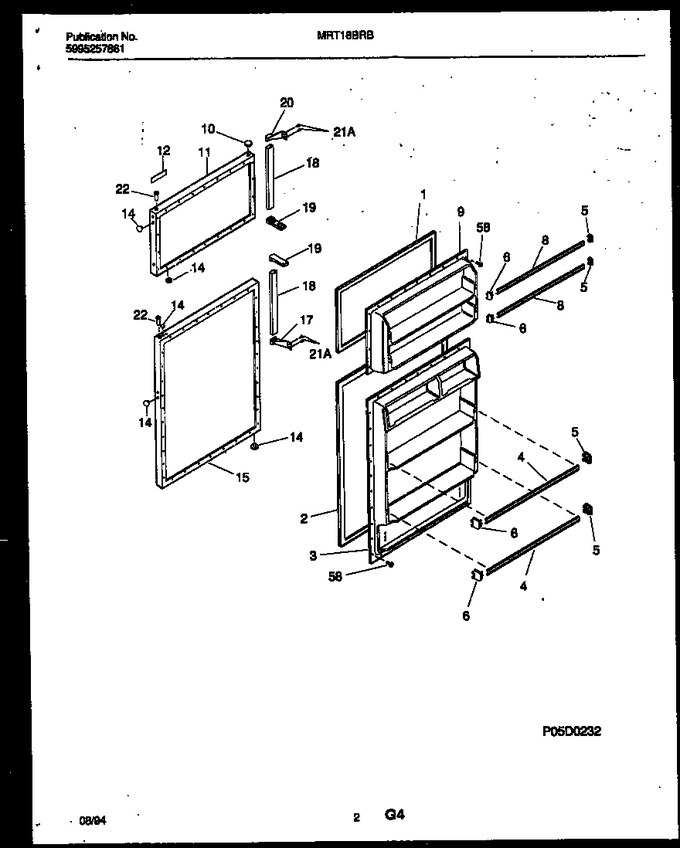

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608902		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732403		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303295446		Panel-inner Door, Refr		Appelez-nous	-
4	5303281388		Rack-door		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
8	5303288345		Rack-door, 25.06`` X 1.58``		Appelez-nous	-
9	5303206550		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917422		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	3916428		Panel-refr Door, Almond, With Insulation, & Cross Braces		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	5303001296		Handle End, (2)				$ 86.36
20	5303001014		Handle End		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*11106	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (non-illustra		Appelez-nous	-
12B	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim/nameplate, Double Fac		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
