02 - Door
03 - Cabinet W/ Fan Assembly

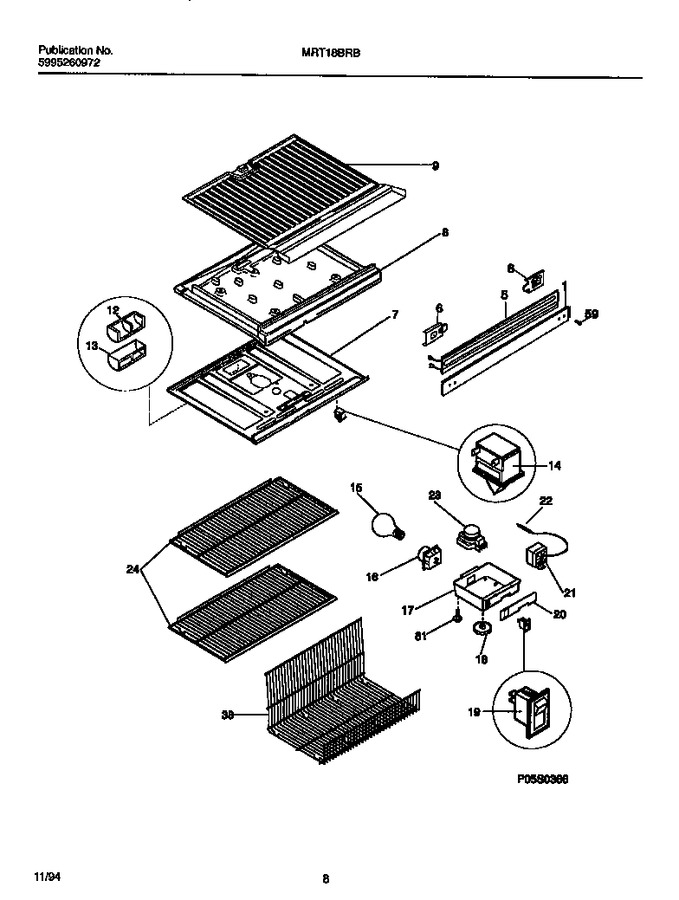

05 - Shelves, Controls, Divider, Mullion
06 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218252504 | Mullion, Almond |
|
- | |||||
| 5 | 218271402 | Heater-mullion |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 5303016367 | Top Panel-refr, W/snap Bushing |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 5303212518 | Bushing, Snap-in, Plastic (non-illustrated) |
|
- | |||||
| 8 | 5303001504 | Divider, Styrofoam |
|
- | |||||
| 9 | 5303211427 | Bottom Panel-frzr |
|
- | |||||
| 12 | 5308000071 | Deflector-air |
|
- | |||||
| 13 | 5303001546 | Cove, Air Deflector |
|
- | |||||
| 13 | 5308016567 | Nut-anchor (non-illustrated) |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 5308000129 | Socket-light/lamp |
|
$ 62.16 | |||||
| 17 | 5303015152 | Box-control |
|
- | |||||
| 18 | 5303300067 | Knob-temp Control |
|
- | |||||
| 19 | 5303001670 | Switch-energy Saver, Slide |
|
- | |||||
| 20 | 215611400 | Label-control Box |
|
- | |||||
| 21 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 5303916855 | Sleeve, Plastic Tube, Temp Control |
|
$ 60.96 | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303291499 | Shelf, Sliding Wire |
|
- | |||||
| 24 | 5303283297 | Stop Clip-shelf (non-illustrated) |
|
- | |||||
| 38 | 5303297857 | Trivet |
|
- | |||||
| 59 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 |
