01 - Freezer Compartment

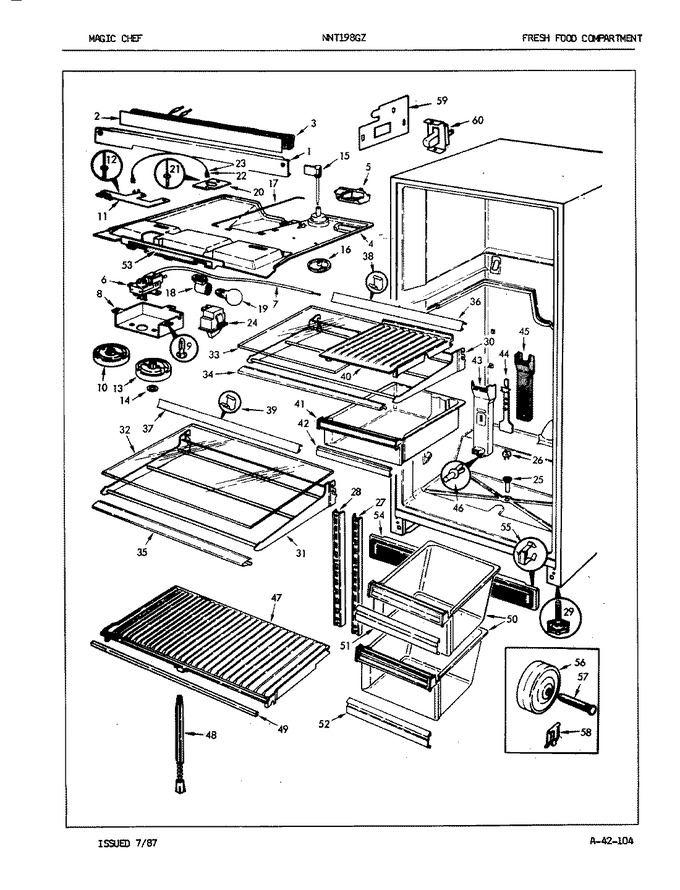

02 - Fresh Food Compartment
03 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 65797-2-AM | Divider, Mullion (alm) |
|
- | |||||
| 2 | 60105-8 | Heater Wire |
|
- | |||||
| 3 | 60140-2 | Insulation |
|
- | |||||
| 3 | 60560-1 | Wire Harness |
|
- | |||||
| 4 | 60085-54 | Top, F.f. Compartment |
|
- | |||||
| 5 | 60120-2 | Deflector |
|
- | |||||
| 6 | 406013-1 | Screw |
|
- | |||||
| 6 | WP68601-6 | Control, Temperature (Replaces: 66545-1) |
|
Immediately | $ 233.80 | ||||
| 7 | 4008-12 | Plastic Tube |
|
- | |||||
| 8 | 405012-1 | Screw |
|
- | |||||
| 8 | 60083-1 | Cover, Temperature Control |
|
- | |||||
| 9 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 10 | 60061-1 | Knob |
|
- | |||||
| 11 | 60147-1 | Bracket, Control |
|
- | |||||
| 12 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 13 | 60061-3 | Knob |
|
- | |||||
| 14 | 420092-900 | Washer, Spring |
|
- | |||||
| 15 | 66609-1 | Damper |
|
- | |||||
| 16 | 60082-3 | Crank, Frzr Control |
|
- | |||||
| 17 | 60078-3 | Rod |
|
- | |||||
| 18 | 60577-1 | Socket, Light |
|
- | |||||
| 19 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 20 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 21 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 22 | 29675-22 | Ground Wire |
|
- | |||||
| 23 | 29675-28 | Ground Wire |
|
- | |||||
| 24 | 54653-28 | Cord, Switch/light |
|
- | |||||
| 24 | W11384469 | Switch, Light (Replaces: 55732-1) |
|
Immediately | $ 33.51 | ||||
| 25 | 54531-8 | Grommet |
|
- | |||||
| 26 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 27 | 60096-5 | Support |
|
- | |||||
| 28 | 60096-4 | Support |
|
- | |||||
| 28 | 400037-1 | Screw |
|
- | |||||
| 29 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 30 | 60570-7 | Frame, Shelf |
|
- | |||||
| 31 | 60570-7 | Frame, Shelf |
|
- | |||||
| 32 | 65598-6 | Glass Shelf |
|
- | |||||
| 33 | 65598-7 | Glass Shelf |
|
- | |||||
| 34 | 60414-19 | Trim |
|
- | |||||
| 35 | 60524-12 | Trim |
|
- | |||||
| 36 | 65276-22 | Trim |
|
- | |||||
| 37 | 65276-22 | Trim |
|
- | |||||
| 38 | 66333-1 | Clip, Shelf Trim |
|
- | |||||
| 39 | 66333-2 | Clip |
|
- | |||||
| 40 | 60075-4 | Cover, Meat Pan |
|
- | |||||
| 41 | 66523-5 | Pan, Meat |
|
- | |||||
| 42 | 66230-1 | Handle |
|
- | |||||
| 43 | 60094-15 | Tunnel |
|
- | |||||
| 44 | 60093-2 | Damper, Air Tunnel |
|
- | |||||
| 45 | 60092-1 | Foam Insulator, Air Tunnel |
|
- | |||||
| 46 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 47 | 60019-6 | Shelf, Crisper |
|
- | |||||
| 48 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 49 | 60454-5 | Trim |
|
- | |||||
| 50 | 60457-430 | Pan, Crisper |
|
- | |||||
| 51 | 66230-4 | Handle |
|
- | |||||
| 52 | 66230-4 | Handle |
|
- | |||||
| 53 | 60571-52 | Insert |
|
- | |||||
| 54 | 60138-7 | Kickplate |
|
- | |||||
| 55 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 55 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 56 | 29834-2 | Wheel |
|
- | |||||
| 57 | 29835-2 | Pin, Wheel |
|
- | |||||
| 58 | 60216-1 | Clip |
|
- | |||||
| 59 | 60583-1 | Bracket, Switch |
|
- | |||||
| 60 | 402013-1 | Screw |
|
- | |||||
| 60 | 60585-1 | Switch, Mullion Heater |
|
- |
