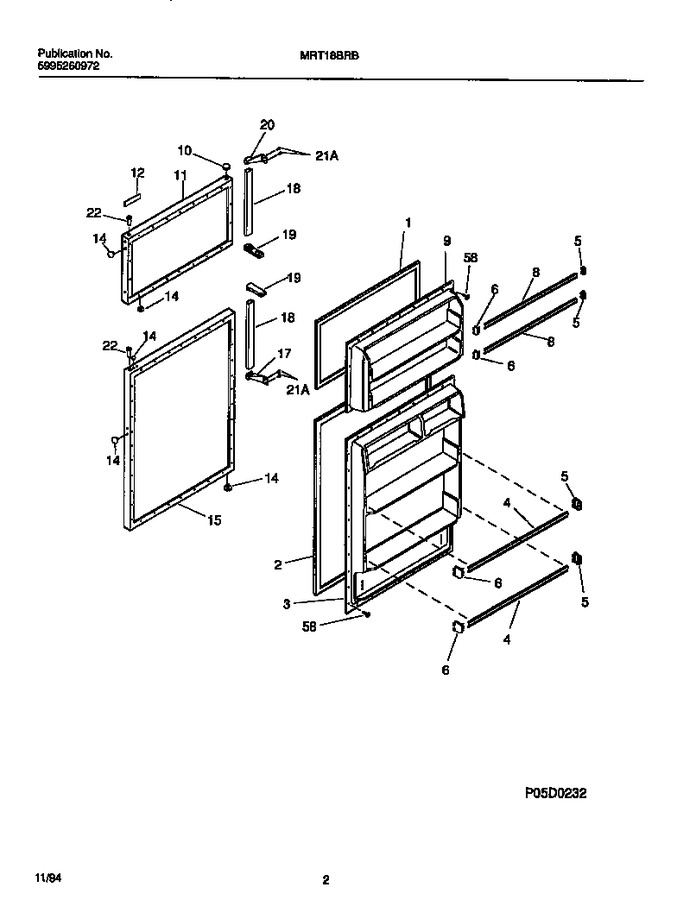

02 - Door
03 - Cabinet W/ Fan Assembly
05 - Shelves, Controls, Divider, Mullion
06 - Cooling System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608912 | Gasket-frzr Door,white,magnetic |
|
- | |||||
| 2 | 215732413 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 5303295446 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281387 | Rack-door, 25.25`` X 1.58`` |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh |
|
$ 64.58 | |||||
| 8 | 5303288345 | Rack-door, 25.06`` X 1.58`` |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917421 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215503701 | Frame-nameplate, White, W/mtg Tape |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916425 | Panel-refr Door,white |
|
- | |||||
| 17 | 5303001015 | Handle End |
|
$ 74.29 | |||||
| 18 | 5303302990 | Handle-door, White |
|
$ 86.15 | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001014 | Handle End |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *53961 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
