SELECT A DIAGRAM

01 - Chest Of Drawers


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Optional Ice Maker Kit


05 - Shelves & Accessories


06 - Unit Compartment & System

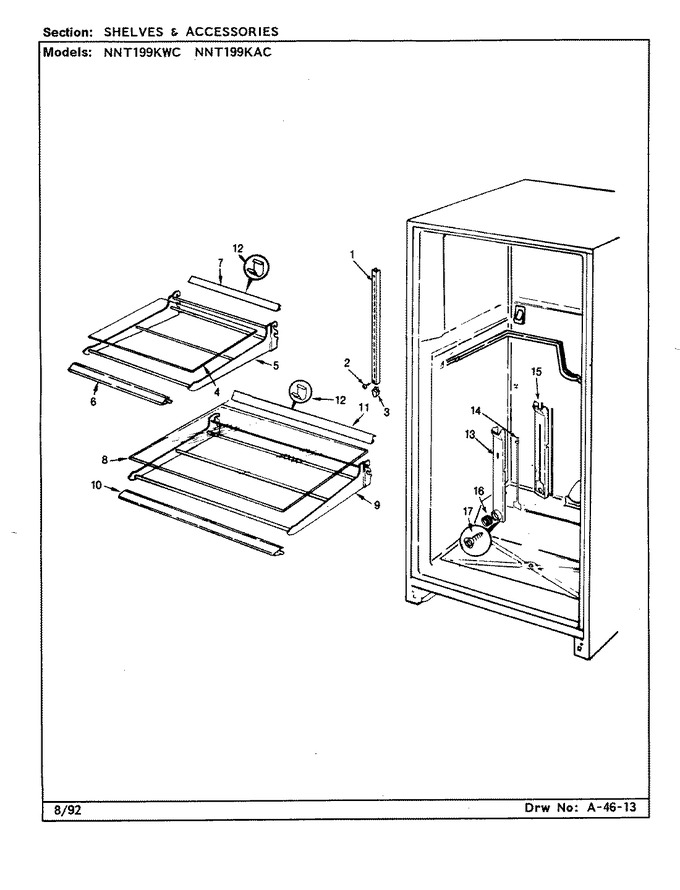

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68238-2		Rail, Cantilever Shelf		Appelez-nous	-
1	68238-1		Rail, Cantilever Shelf		Appelez-nous	-
1	68238-3		Rail, Cantilever Shelf		Appelez-nous	-
2	400037-28		Screw		Appelez-nous	-
3	60340-1		End Cap, Center Rail		Appelez-nous	-
4	66604-23		Glass, Cantilever Split Shelf		Appelez-nous	-
5	60570-36		Frame, Shelf		Appelez-nous	-
6	68136-21		Trim		Appelez-nous	-
7	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
8	66604-22		Glass, Cantilever Shelf		Appelez-nous	-
9	60570-45		Frame, Shelf		Appelez-nous	-
10	68136-35		Trim, Cantilever Shelf		Appelez-nous	-
11	65276-21		Trim, Shelf (full Rear)		Appelez-nous	-
12	66333-1		Clip, Shelf Trim		Appelez-nous	-
13	68285-3		Cover, Air Tunnel		Appelez-nous	-
14	68290-3		Damper, Air Tunnel		Appelez-nous	-
15	68289-2		Insulation, Air Tunnel		Appelez-nous	-
16	68282-1		Bellows, Air Tunnel		Appelez-nous	-
17	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62

    View Diagram in Separate Window       Print Part List
