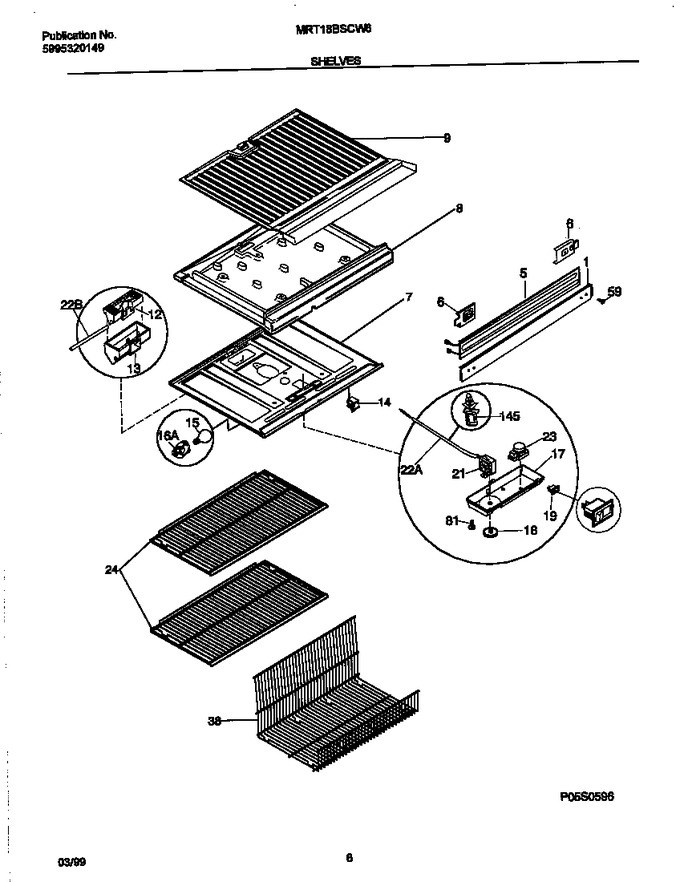

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874301		Mullion,white ,1		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218814800		Panel-top,refr Cavity		Appelez-nous	-
8	218814600		Divider, Styrofoam		Appelez-nous	-
9	218814700		Panel-bottom,frzr Cavity				$ 288.94
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303307352		Knob, Temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature			Immediately	$ 164.57
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
23	215846602		Timer-defrost   (Replaces: 215267800)			Immediately	$ 28.20
24	5303307451		Shelf, Sliding, Wire, Refr Section		Appelez-nous	-
38	5303309901		Trivet		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*07607	5303001380		Screw		Appelez-nous	-
*07608	218878500		Harness-wiring,control/divider				$ 105.99
*07609	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*07610	5308016567		Nut-anchor		Appelez-nous	-
*07611	5303001260		Screw				$ 6.73
*07612	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*07613	3205266		Edge Protector, Wiring Harness				$ 80.09

    View Diagram in Separate Window       Print Part List
