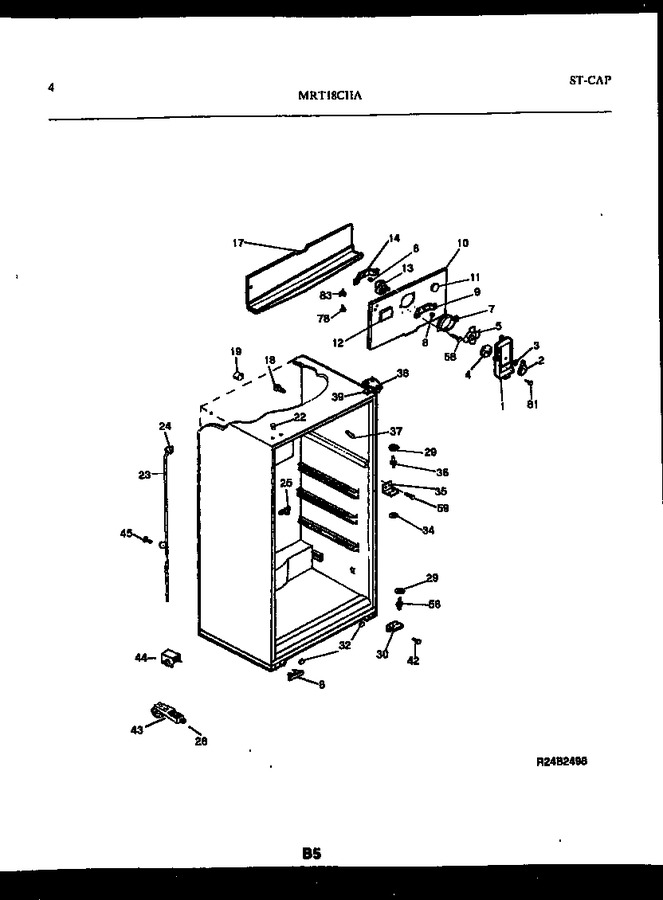

MRT18CHAAD0 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	5303290737	Cover-fan	Appelez-nous	-
2	5308000081	Knob - Damper Control			$ 36.02
3	5303001028	Nut,push-on	Appelez-nous	-
4	3206110	Damper-fan Cover			$ 53.08
5	5308000010	Fan Blade		Immediately	$ 49.03
6	3206135	Cover-lwr Hng Screw	Appelez-nous	-
7	5308000124	Ring-fan Orifice			$ 53.58
8	5300157666	Bushing - Motor Mtg, (2)	Appelez-nous	-
9	5303205118	Bracket-motor Mtg, Front	Appelez-nous	-
10	5303209636	Screw-coil Cover, Cr Pan Head, 8-15(a) X 5/8 (non-illustrated)	Appelez-nous	-
10	3206451	Cover-evap Coil	Appelez-nous	-
11	5303208309	Plug-hole, Factory Test			$ 45.50
12	5308013636	Plug, Decorative, Ice Maker Hole	Appelez-nous	-
13	5300158289	Motor-evap Fan (Replaces: 215360800)		Immediately	$ 149.94
14	5303205119	Bracket-motor Mtg, Rear	Appelez-nous	-
17	3206444	Trough-drain	Appelez-nous	-
18	5308000097	Support, Evap Cover, (2)	Appelez-nous	-
19	5303001198	Tube-rubber	Appelez-nous	-
22	5303001388	Plug-button, White, Upr Hinge Holes			$ 2.60
22	5303001389	Plug-button, Almond, Upr Hinge Holes	Appelez-nous	-
23	5303269702	Tube-drain, W/seal Ring			$ 104.63
24	5303207353	Seal Ring, Drain Tube			$ 6.81
25	5308000056	Spout-drain Tube			$ 11.66
25	5303001361	Pin, Push, Drain Spout (2) (non-illustrated)	Appelez-nous	-
28	5308011326	Washer-adj Bolt, Nylon, (2) (non-illustrated)			$ 9.87
28	5308009761	Bolt, Roller Adj (2)			$ 18.61
29	5308000007	Washer, .34 X .62 X .05, Nylon	Appelez-nous	-
30	3206136	Bracket-lower Hinge	Appelez-nous	-
32	215217702	Plug-button, Cabinet Base, (2)	Appelez-nous	-
34	5308000186	Washer, .34 X .62 X .10, Nylon		Immediately	$ 6.02
35	5303001369	Bracket-ctr Hinge	Appelez-nous	-
36	5308000184	Pin-center Hinge			$ 8.87
