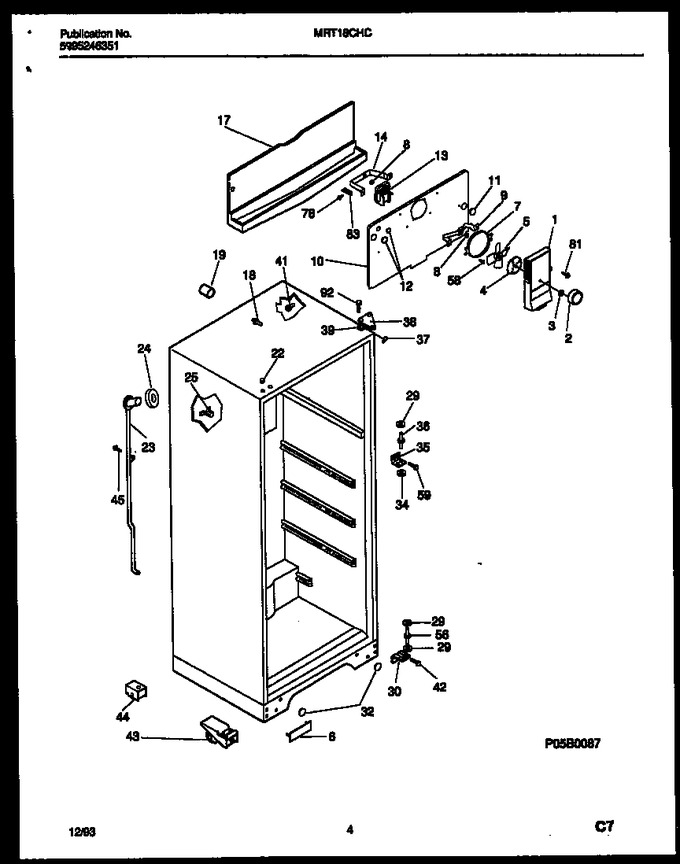

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303290737		Cover-fan		Appelez-nous	-
2	5308000081		Knob - Damper Control				$ 36.02
3	5303001028		Nut,push-on		Appelez-nous	-
4	3206110		Damper-fan Cover				$ 53.08
5	5308000010		Fan Blade			Immediately	$ 49.03
6	3206135		Cover-hole, Lower Hinge		Appelez-nous	-
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	3206451		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	215079000		Plug-harness Hole, Round				$ 8.61
12	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
13	5300158289		Motor-evap Fan   (Replaces: 215360800)			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206444		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215134501		Plug-button,white,upr Hinge Holes		Appelez-nous	-
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5308000056		Spout-drain Tube				$ 11.66
29	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	215217702		Plug-button, Cabinet Base, (2)		Appelez-nous	-
34	5308000186		Washer, .34 X .62 X .10, Nylon			Immediately	$ 6.02
35	5303001369		Bracket-ctr Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
41	5308000039		Screw		Appelez-nous	-
42	3206143		Screw-lwr Hinge Mtg, Hex Washer Hd, 1/4-20 X 5/8, (4)		Appelez-nous	-
43	5300188673		Roller Assy-front (2)		Appelez-nous	-
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	5303001321		Pin-lower Hinge				$ 17.25
58	5308002748		Screw		Appelez-nous	-
59	5308012258		Screw				$ 2.25
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
*92026	5308016571		Plug-button, Liner				$ 4.79
22A	3051070		Screw, Spcl Hx Wshr Hd, 10-32 X 1/2 (non-illustrated)		Appelez-nous	-
25A	5303001361		Pin-push, Plastic (non-illustrated)		Appelez-nous	-
30A	215882300		Tapping Plate, Lower Hinge, (2) (non-illustrated)		Appelez-nous	-
43A	5308009760		Roller, (2) (non-illustrated)		Appelez-nous	-
43B	5308009761		Bolt-roller Adj, (2) (non-illustrated)				$ 18.61
43C	5308009790		Spring-roller Adj, (2) (non-illustrated)				$ 4.30
43D	5308011326		Washer-adj Bolt, Nylon, (2) (non-illustrated)				$ 9.87
