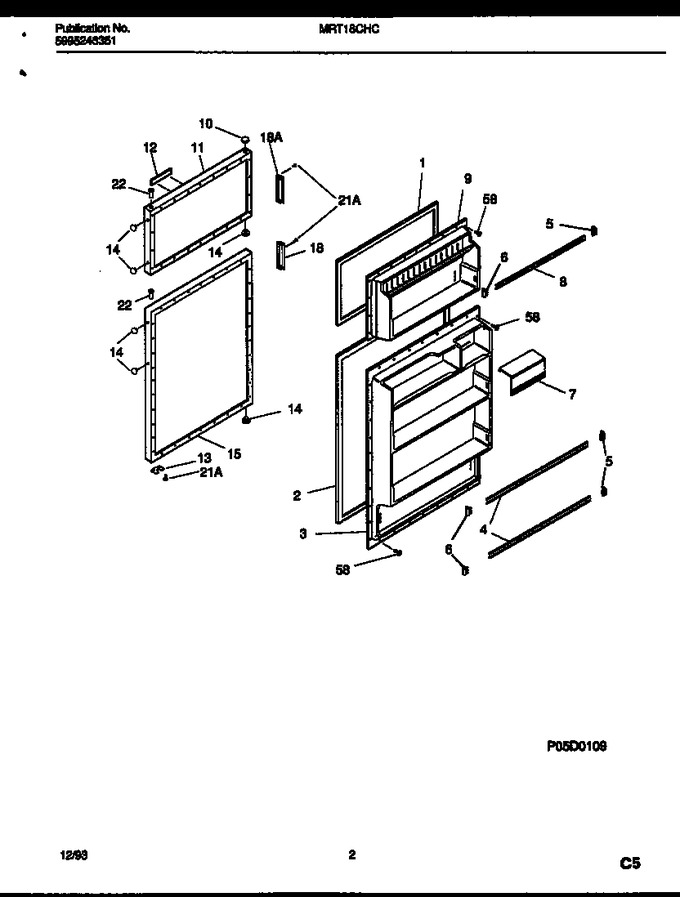

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608916 | Gasket-frzr Door, Magnetic, White |
|
$ 258.30 | |||||
| 2 | 5303207345 | Gasket-refr Door, Magnetic, White |
|
Immediately | $ 188.19 | ||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281481 | Rack, Door |
|
$ 165.80 | |||||
| 5 | 5303207230 | Support - Door Rack, Rh |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support - Door Rack, Lh |
|
$ 17.59 | |||||
| 7 | 5303290741 | Door - Dairy |
|
- | |||||
| 8 | 5303281482 | Rack, Door |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917234 | Panel-frzr Door, Almond, W/ Insulation |
|
- | |||||
| 12 | 5303276130 | Frame-nameplate, W/ Mtg Tape |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303917236 | Panel-refr Door, Almond, W/ Insulation |
|
- | |||||
| 18 | 5303273080 | Handle-door, Almond |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *92022 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 5315340760 | Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated) |
|
- | |||||
| 18A | 5303273082 | Handle-door, Almond |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 | |||||
| 7A | 5303001380 | Screw |
|
- |
