SELECT A DIAGRAM

01 - Freezer Compartment

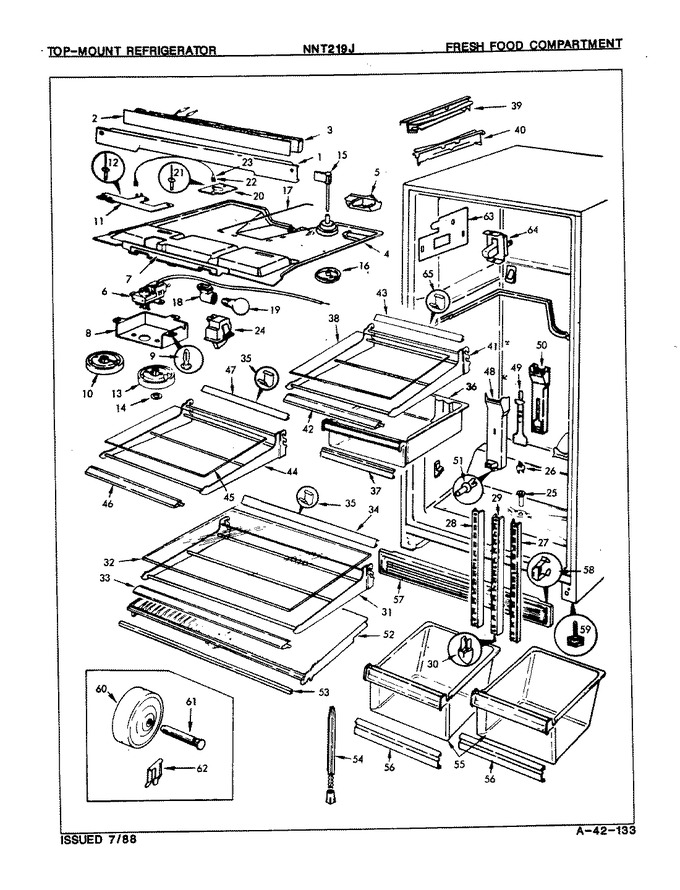

02 - Fresh Food Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65797-2-HW		Divider, Mullion (hw)		Appelez-nous	-
1	9986-117		Screw		Appelez-nous	-
2	60105-8		Heater Wire		Appelez-nous	-
3	60560-2		Wire Harness		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
4	60085-44		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-2)			Immediately	$ 233.80
7	60571-59		Insert, Trim Escutcheon		Appelez-nous	-
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	60061-1		Knob		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	60061-3		Knob		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	68158-1		Damper		Appelez-nous	-
16	60082-3		Crank, Frzr Control		Appelez-nous	-
17	60078-4		Rod, Frzr Control		Appelez-nous	-
18	60577-1		Socket, Light		Appelez-nous	-
19	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
20	60147-2		Bracket, Light Socket		Appelez-nous	-
21	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
22	29675-28		Ground Wire		Appelez-nous	-
23	29675-22		Ground Wire		Appelez-nous	-
24	54653-28		Cord, Switch/light		Appelez-nous	-
24	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54531-8		Grommet		Appelez-nous	-
26	65039-1		Cap, Drain Tube		Appelez-nous	-
27	60096-5		Support		Appelez-nous	-
28	60096-4		Support		Appelez-nous	-
29	400037-1		Screw		Appelez-nous	-
29	60096-6		Support		Appelez-nous	-
30	60340-1		End Cap, Center Rail		Appelez-nous	-
31	60570-2		Frame, Shelf		Appelez-nous	-
32	60162-1		Glass Shelf		Appelez-nous	-
33	60524-28		Trim,shelf (full Front)		Appelez-nous	-
34	65276-21		Trim, Shelf (full Rear)		Appelez-nous	-
35	66333-1		Clip, Shelf Trim		Appelez-nous	-
36	66523-10		Pan, Meat		Appelez-nous	-
37	66230-10		Handle		Appelez-nous	-
38	60162-28		Glass, Meat Shelf		Appelez-nous	-
39	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
40	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
41	60570-10		Frame, Shelf		Appelez-nous	-
42	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
43	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
44	60570-10		Frame, Shelf		Appelez-nous	-
45	60162-15		Glass Shelf		Appelez-nous	-
46	60524-6		Trim, Meat Shelf (front)		Appelez-nous	-
47	65276-4		Trim, Meat Shelf (rear)		Appelez-nous	-
48	60094-21		Tunnel		Appelez-nous	-
49	60093-2		Damper, Air Tunnel		Appelez-nous	-
50	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
51	28013-2		Rivet, Air Tunnel		Appelez-nous	-
52	66643-1		Shelf, Crisper		Appelez-nous	-
53	60454-11		Trim, Crisper Shelf		Appelez-nous	-
54	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
55	68163-416		Pan, Crisper		Appelez-nous	-
56	66230-11		Insert, Crisper Pan		Appelez-nous	-
57	60138-7		Kickplate		Appelez-nous	-
58	60100-1		Clip, Kickplate				$ 5.85
59	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
60	29834-2		Wheel		Appelez-nous	-
61	29835-2		Pin, Wheel		Appelez-nous	-
62	60216-1		Clip		Appelez-nous	-
63	60583-1		Bracket, Switch		Appelez-nous	-
64	402013-1		Screw		Appelez-nous	-
64	60585-1		Switch, Mullion Heater		Appelez-nous	-
65	66333-2		Clip		Appelez-nous	-
65	104728-1		Manual, Use & Care		Appelez-nous	-
