SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment

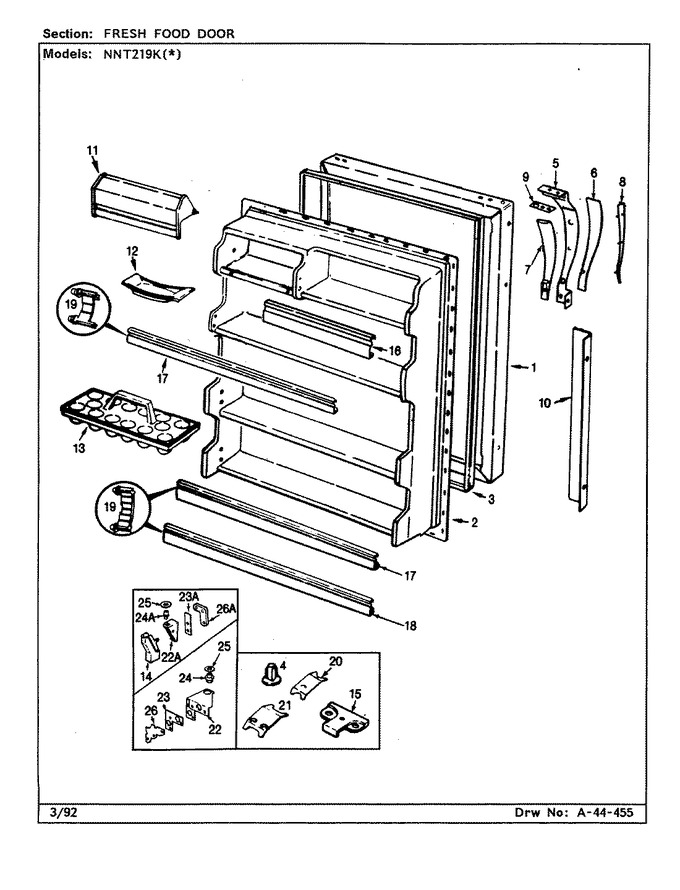

04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68473-3-AM		Panel, F.f. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68887-1		Inner Panel		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	WP70048-3		Gasket, F.f. Door   (Replaces: 66199-6)				$ 283.11
4	55782-6		Plug Button (almond)		Appelez-nous	-
5	66255-2		Door Handle		Appelez-nous	-
5	65275-57		Screw		Appelez-nous	-
6	68036-1		Insert		Appelez-nous	-
7	60580-3		Insert		Appelez-nous	-
8	68048-1		Insert		Appelez-nous	-
8	65275-53		Screw		Appelez-nous	-
9	68776-1		Shim Handle----na		Appelez-nous	-
10	60453-16		Handle Ext		Appelez-nous	-
11	60406-43		Door, Dairy		Appelez-nous	-
12	29936-2		Tray, Butter		Appelez-nous	-
13	60066-9		Tray, Egg		Appelez-nous	-
14	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
15	9986-108		Screw		Appelez-nous	-
15	60419-10		Door Stop		Appelez-nous	-
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-287)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-285)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-335)				$ 129.55
19	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
20	56209-3		Clip, Stop Screw		Appelez-nous	-
21	60123-2		Clip, Stop Screw		Appelez-nous	-
22	67714-6		Hinge, Lower		Appelez-nous	-
22	403100-1		Screw		Appelez-nous	-
23	60626-1		Shim, Lower Hinge		Appelez-nous	-
24	68788-1		Hinge Pin		Appelez-nous	-
25	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
26	403100-1		Screw		Appelez-nous	-
26	65790-3		Tapping Plate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
