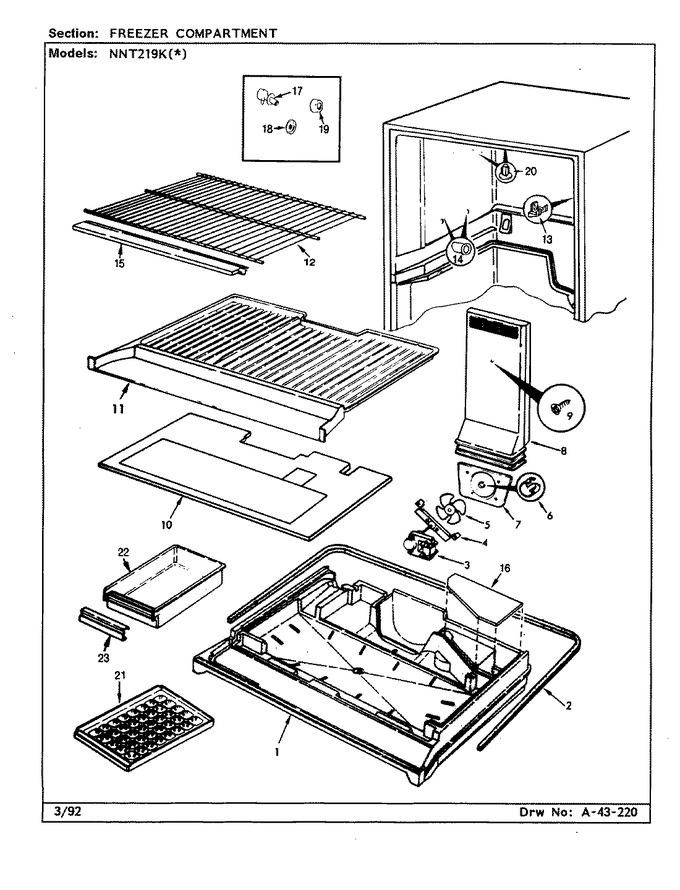

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67520-2		Foam Tray		Appelez-nous	-
2	68866-3		Foam Seal		Appelez-nous	-
2	67730-1		Seal, Front Corner		Appelez-nous	-
3	WP61004888		Motor, Evaporator Fan   (Replaces: 54482-10)			Immediately	$ 104.99
3	406062-1		Screw		Appelez-nous	-
4	400015-12		Screw		Appelez-nous	-
4	64856-1		Bracket, Fan Motor		Appelez-nous	-
5	64359-1		Blade, Evaporator Fan		Appelez-nous	-
6	420092-900		Washer, Spring		Appelez-nous	-
7	60608-2		Orifice, Fan Blade		Appelez-nous	-
8	66325-34		Seal, Air Tunnel----na		Appelez-nous	-
8	68592-3		Tunnel, Air		Appelez-nous	-
9	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
10	66403-2		Cover, Evaporator		Appelez-nous	-
11	68946-2		Seal		Appelez-nous	-
11	66478-1		Bottom, Frz.		Appelez-nous	-
12	60438-11		Shelf		Appelez-nous	-
13	66101-1		Stud, Shelf		Appelez-nous	-
13	400019-1		Screw		Appelez-nous	-
14	60313-1		Cup, Shelf		Appelez-nous	-
15	60414-38		Trim,freezer Shelf		Appelez-nous	-
16	66480-5		Cover, Plenum		Appelez-nous	-
17	68307-1		Grommet, Water Entry		Appelez-nous	-
18	68187-1		Cap, Connector		Appelez-nous	-
19	68387-1		Cap, Grommet		Appelez-nous	-
20	67557-1		Plug Button		Appelez-nous	-
20	66920-2		Plug Button		Appelez-nous	-
21	WP61002140		Ice Cube Tray   (Replaces: 60112-1)				$ 18.23
22	60653-1		Pan, Ice		Appelez-nous	-
23	66230-9		Handle Ice Cube Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
