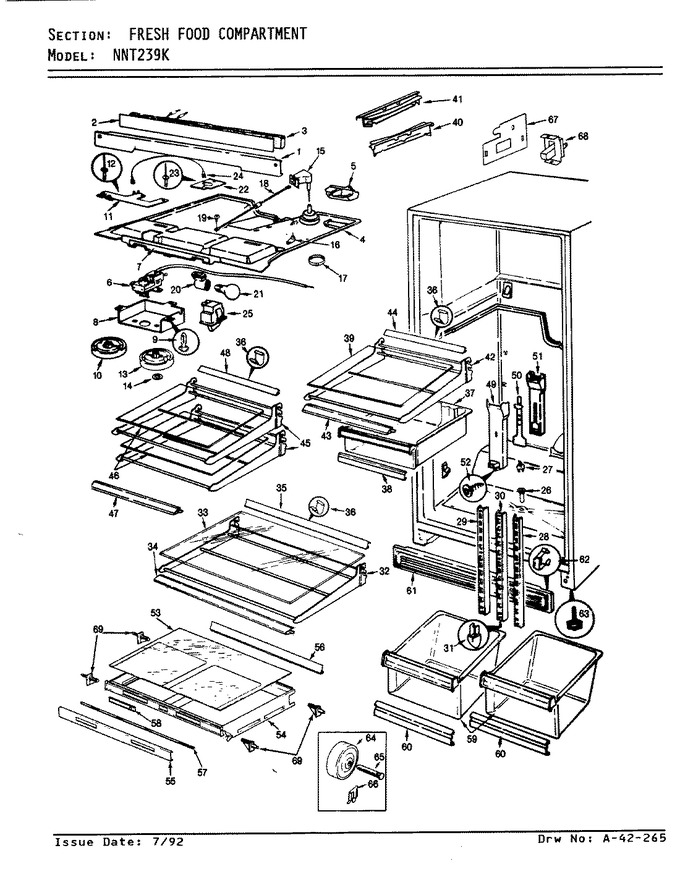

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65275-54		Screw		Appelez-nous	-
1	68434-3-AM		Divider, Mullion (alm)		Appelez-nous	-
2	68829-3		Heater		Appelez-nous	-
3	68685-2		Wire Harness		Appelez-nous	-
3	60140-3		Insulation		Appelez-nous	-
4	68533-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	406013-1		Screw		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
7	60571-59		Insert, Trim Escutcheon		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68600-11		Knob, Temp. Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68600-12		Knob, Frz. Control		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	67558-4		Orifice Damper Assembly		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67493-1		Cover, Crank		Appelez-nous	-
18	67499-4		Rod		Appelez-nous	-
19	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
19	420005-1		Washer, Control Rod		Appelez-nous	-
20	60577-1		Socket, Light		Appelez-nous	-
21	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
22	60147-2		Bracket, Light Socket		Appelez-nous	-
23	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
24	29675-28		Ground Wire		Appelez-nous	-
25	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
26	54531-8		Grommet		Appelez-nous	-
27	65039-1		Cap, Drain Tube		Appelez-nous	-
28	60096-5		Support		Appelez-nous	-
29	60096-4		Support		Appelez-nous	-
30	60096-6		Support		Appelez-nous	-
31	60340-1		End Cap, Center Rail		Appelez-nous	-
32	60570-26		Frame, Shelf		Appelez-nous	-
33	66604-26		Glass, Cantilever Shelf		Appelez-nous	-
34	60524-39		Trim		Appelez-nous	-
35	65276-27		Trim, Rear-full		Appelez-nous	-
36	66333-1		Clip, Shelf Trim		Appelez-nous	-
37	66523-10		Pan, Meat		Appelez-nous	-
38	66230-13		Trim		Appelez-nous	-
39	66604-35		Shelf, Meat		Appelez-nous	-
40	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-
41	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
42	60570-11		Frame, Shelf		Appelez-nous	-
43	60414-64		Trim, Front-1/2 Shelf		Appelez-nous	-
44	60276-36		Trim (rear), Centilever Shelf		Appelez-nous	-
45	60570-11		Frame, Shelf		Appelez-nous	-
46	66604-27		Glass, Shelf		Appelez-nous	-
47	60524-42		Trim Shelf		Appelez-nous	-
48	65276-36		Trim, Rear-1/2 Shelf		Appelez-nous	-
49	60094-21		Tunnel		Appelez-nous	-
50	60093-2		Damper, Air Tunnel		Appelez-nous	-
51	60092-1		Foam Insulator, Air Tunnel		Appelez-nous	-
52	W11233072		Screw   (Replaces: 400015-31)			Immediately	$ 12.62
53	68743-15		Shelf, Crisper		Appelez-nous	-
54	68735-3		Shelf, Crisper		Appelez-nous	-
55	68744-5		Trim		Appelez-nous	-
56	68798-2		Trim		Appelez-nous	-
57	68797-2		Seal		Appelez-nous	-
58	68742-2		Slide, Control		Appelez-nous	-
59	60457-496		Pan, Crisper		Appelez-nous	-
60	66230-15		Trim		Appelez-nous	-
61	60138-8		Kickplate		Appelez-nous	-
62	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
62	60100-1		Clip, Kickplate				$ 5.85
63	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
64	29834-2		Wheel		Appelez-nous	-
65	29835-2		Pin, Wheel		Appelez-nous	-
66	60216-1		Clip		Appelez-nous	-
67	9986-117		Screw		Appelez-nous	-
67	60583-1		Bracket, Switch		Appelez-nous	-
68	60585-1		Switch, Mullion Heater		Appelez-nous	-
69	68836-1		Stud, Crisper Support		Appelez-nous	-
