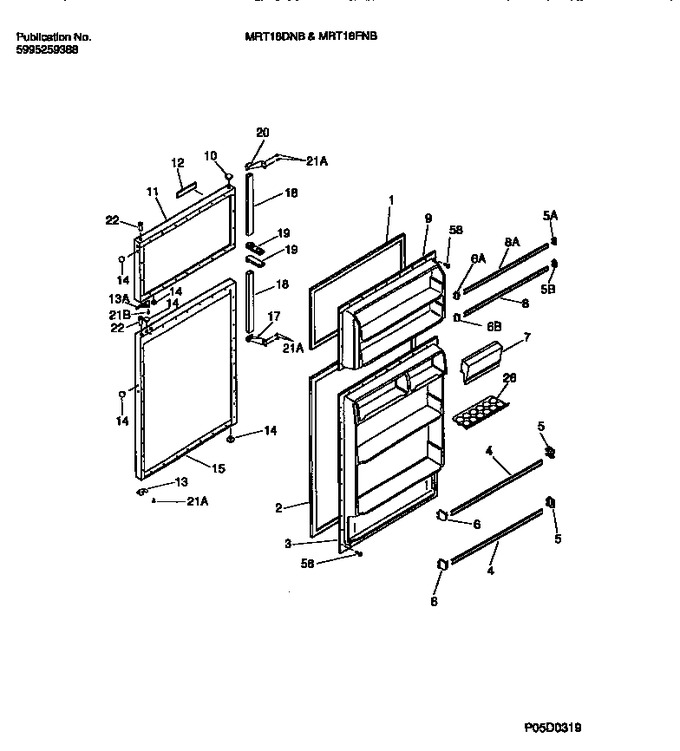

01 - Top Mount Refrigerator


02 - Door Section


03 - Cabinet W/fan Assembly


04 - Shelves, Controls, Divider, Mullion


05 - Cooling System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	5303300061		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door, 24.38`` X 1.62``   (Replaces: 215366021)			Immediately	$ 65.83
5	3206150		Support-door Rack, Extends 1/81``, Rh				$ 12.58
6	3206151		Support-door Rack, Extends 1.81``, Lh		Appelez-nous	-
7	5303293819		Door-dairy		Appelez-nous	-
8	215366020		Rack-door, 24.00`` X 1.62``		Appelez-nous	-
9	5303295730		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917467		Panel-frzr Door, Almond		Appelez-nous	-
12	215503711		Frame-nameplate, Almond, W/mtg Tape		Appelez-nous	-
13	530800255		Door Stop		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917469		Panel-refr Door, Almond		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*07000	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	5315340712		Tape, Adhesive, 12`` Lg. Foam, Double-faced (non-pictured)		Appelez-nous	-
12B	5315340760		Tape, Adhesive, 60`` Lg, Foam, Trim / Nameplate, Double Faced (non-illustrated)		Appelez-nous	-
13A	218248002		Door Stop, Almond Frzr		Appelez-nous	-
21A	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21B	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
5A	3206165		Support-door Rack, Extends 1.06``, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Extends 1.06``, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Extends 1.06``, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Extends 1.06``, Lh		Appelez-nous	-
8A	5303300237		Rack-door, 23.97`` X 1.12``				$ 133.93
