SELECT A DIAGRAM

01 - Cover

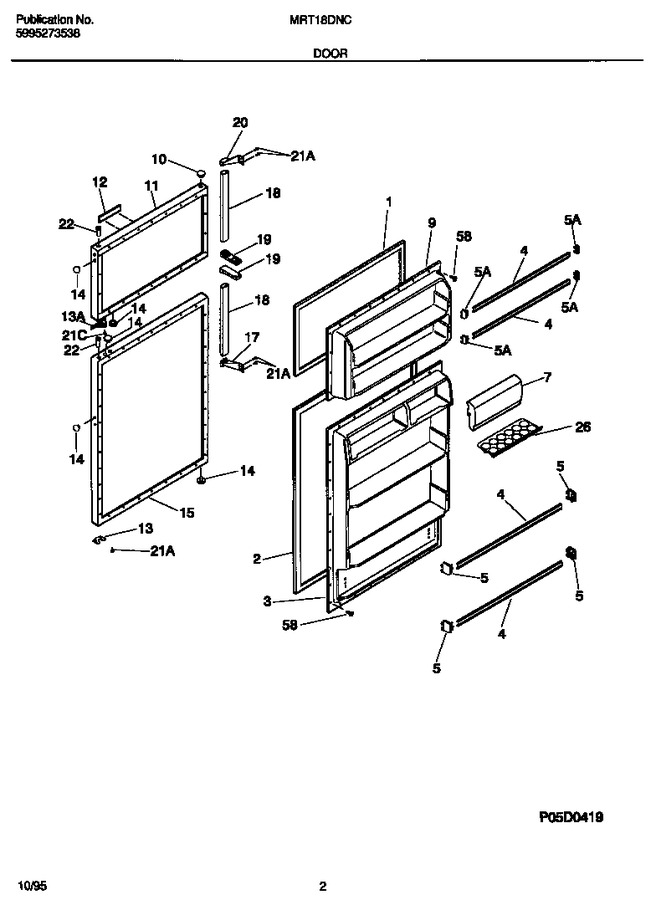

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 5303288239)			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	215366002		Rack-door,23.81`` X 1.62``   (Replaces: 218027022)			Immediately	$ 65.83
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917520		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215503711		Frame-nameplate, Almond, W/mtg Tape		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	5308000255		Door Stop				$ 42.20
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917522		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*53000	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
7A	218287801		Door-dairy				$ 41.48
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
