SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System

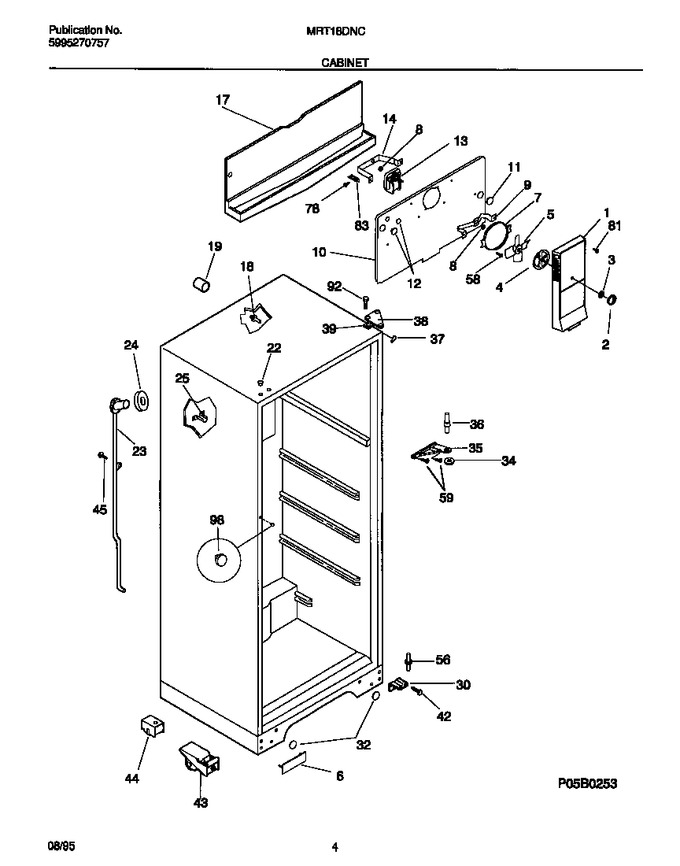

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303300050		Cover-fan		Appelez-nous	-
2	5303299978		Knob-damper Control		Appelez-nous	-
3	5303001028		Nut,push-on		Appelez-nous	-
4	218430000		Damper-fan Cover, Black				$ 50.99
5	5308000010		Fan Blade			Immediately	$ 49.03
6	218448301		Cover, White, Lwr Hinge Hole				$ 15.91
7	5308000124		Ring-fan Orifice				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket-motor Mtg, Front		Appelez-nous	-
10	3206451		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	215079000		Plug-harness Hole, Round				$ 8.61
13	5300158289		Motor-evap Fan   (Replaces: 215360800)			Immediately	$ 149.94
14	5303205119		Bracket-motor Mtg, Rear		Appelez-nous	-
17	3206444		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
22	215774901		Plug-button,white ,upr Hinge Holes			Immediately	$ 18.20
23	5303269702		Tube-drain, W/seal Ring				$ 104.63
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
30	3206136		Bracket-lower Hinge		Appelez-nous	-
32	215217701		Plug-button, White, Cabinet Base				$ 6.56
34	5308000007		Washer, .34 X .62 X .05, Nylon		Appelez-nous	-
35	218220101		Bracket-ctr Hinge, Light Grey		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303202336		Trim-cabinet Corner, White		Appelez-nous	-
38	3206100		Bracket-upper Hinge		Appelez-nous	-
39	5303001037		Shim - Upper Hinge				$ 12.39
42	215880100		Screw-hinge Mtg, Hex Washer Head, 1/4-20 X 5/8, (2)		Appelez-nous	-
43	5300188673		Roller Assy, Front		Appelez-nous	-
44	5303283014		Roller Assy, Metal Housing		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099701		Plug-button, White, Ctr Hinge Hole				$ 5.99
*61241	5308016571		Plug-button, Cabinet Liner				$ 4.79
*61243	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
12A	215079100		Plug-wtr Inlet Tube, Round				$ 6.25
30A	218368500		Shim, Lower Hinge (not Illustrated)				$ 12.58
30B	215882300		Tapping Plate, Lower Hinge, (2) (not Illustrated)		Appelez-nous	-
43A	5308009760		Roller (not Illustrated)		Appelez-nous	-
43B	5308009790		Spring-roller Adj (not Illustrated)				$ 4.30
43C	5308011326		Washer, .34 X .62 X .02, Nylon (not Illustrated)				$ 9.87
43D	3051070		Screw, Hex Washer Head, 10-32 X 1/2, Special (not Illustrated)		Appelez-nous	-
43E	5308009761		Bolt-roller Adj (not Illustrated)				$ 18.61
