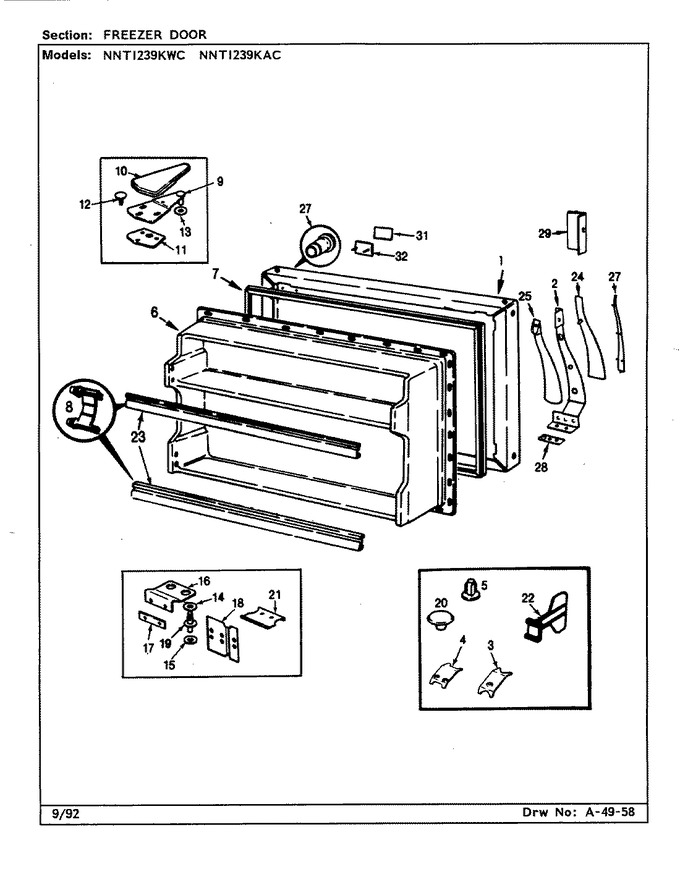

NNTI239KAC (BOM: CC92A) | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	68476-2-AM	Panel, Outer (alm)	Appelez-nous	-
1	RA95056-1	Door Insulation Kit	Appelez-nous	-
2	66255-1	Door Handle	Appelez-nous	-
2	9986-122	Screw	Appelez-nous	-
3	56209-3	Clip, Stop Screw	Appelez-nous	-
4	60123-2	Clip, Stop Screw	Appelez-nous	-
5	55782-6	Plug Button (almond)	Appelez-nous	-
6	65936-4	Liner, Door	Appelez-nous	-
6	65275-5	Screw	Appelez-nous	-
7	66199-7	Gasket, Door	Appelez-nous	-
8	WP65245-1	Retainer, Shelf Trim (Replaces: 65245-1)			$ 9.39
9	53709-20	Hinge, Upper	Appelez-nous	-
9	WP3-24838-048	Screw (Replaces: 65275-52)			$ 7.00
10	65003-3	Cover, Upper Hinge (alm)	Appelez-nous	-
11	65031-1	Shim, Upper Hinge	Appelez-nous	-
12	56144-9	Plug Button, Hinge Screw (alm)	Appelez-nous	-
13	54233-1	Washer			$ 7.71
14	67483-1	Washer, Center Hinge (upper)	Appelez-nous	-
15	54233-2	Washer	Appelez-nous	-
16	68811-2	Hinge, Center	Appelez-nous	-
16	65275-55	Screw	Appelez-nous	-
17	68812-1	Shim, Center Hinge	Appelez-nous	-
18	68377-1	Tapping Plate, Center Hinge	Appelez-nous	-
19	67322-1	Pin, Center Hinge	Appelez-nous	-
20	67634-3	Plug Button, Hinge Cup (alm)	Appelez-nous	-
21	65275-48	Screw	Appelez-nous	-
21	68988-1	Stop, Door	Appelez-nous	-
22	64097-11	Organizer, Shelf	Appelez-nous	-
23	WP61003045	Trim, Frz Dr Shelf (Replaces: 68375-13)			$ 129.55
24	WP61003045	Trim, Frz Dr Shelf (Replaces: 68375-13)			$ 129.55
25	68036-4	Insert (alm)	Appelez-nous	-
26	65275-53	Screw	Appelez-nous	-
26	60580-6	Insert	Appelez-nous	-
27	68048-5	Insert, Vinyl	Appelez-nous	-
28	29356-1	Retainer, Nameplate	Appelez-nous	-
29	68776-1	Shim Handle----na	Appelez-nous	-
30	60453-22	Handle Trim Extension	Appelez-nous	-
31	66982-4	Bezel, Nameplate	Appelez-nous	-
32	66986-6	Bezel, Nameplate	Appelez-nous	-
