SELECT A DIAGRAM
01 - Freezer Compartment

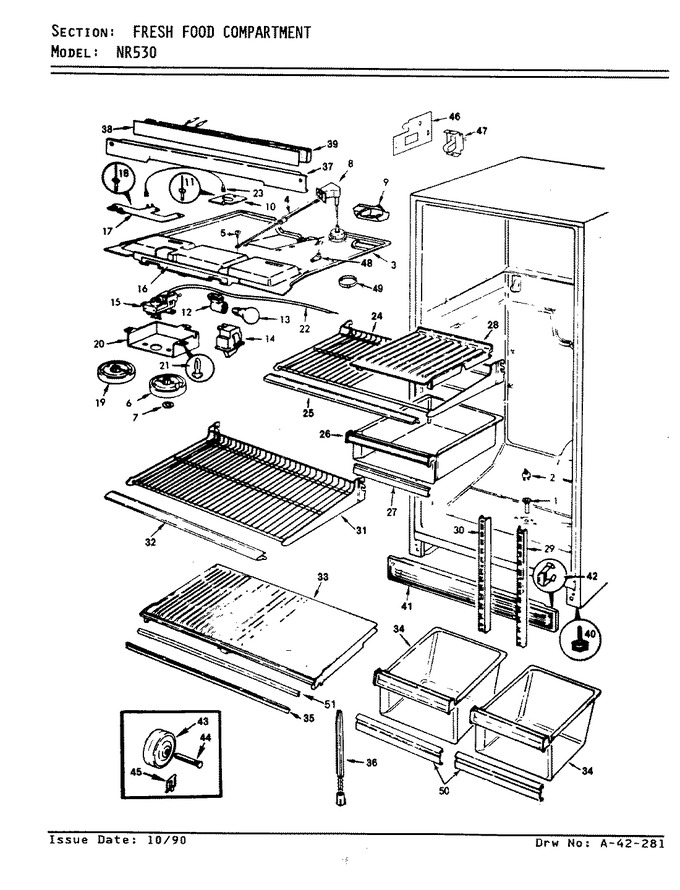

02 - Fresh Food Compartment
03 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54531-8 | Grommet |
|
- | |||||
| 2 | 65039-1 | Cap, Drain Tube |
|
- | |||||
| 3 | 68530-2 | Top, F.f. Compartment |
|
- | |||||
| 4 | 67499-3 | Rod, Freezer Control |
|
- | |||||
| 5 | WP59002061 | Screw (Replaces: 65275-13) |
|
$ 6.98 | |||||
| 5 | 420005-1 | Washer, Control Rod |
|
- | |||||
| 6 | 68600-2 | Knob, Frz. |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 405016-103) |
|
Immediately | $ 12.62 | ||||
| 7 | 420092-900 | Washer, Spring |
|
- | |||||
| 8 | 67558-6 | Damper |
|
- | |||||
| 9 | 60120-2 | Deflector |
|
- | |||||
| 10 | 60147-2 | Bracket, Light Socket |
|
- | |||||
| 11 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 12 | 60577-1 | Socket, Light |
|
- | |||||
| 13 | 40A15 | Bulb, Light (40 Watt) (Replaces: 31956) |
|
Immediately | $ 1.98 | ||||
| 14 | 54653-28 | Cord, Switch/light |
|
- | |||||
| 14 | W11384469 | Switch, Light (Replaces: 55732-1) |
|
Immediately | $ 33.51 | ||||
| 15 | 406013-1 | Screw |
|
- | |||||
| 15 | WP68601-6 | Control, Temperature (Replaces: 68119-3) |
|
Immediately | $ 233.80 | ||||
| 16 | 60571-82 | Insert |
|
- | |||||
| 17 | 60147-1 | Bracket, Control |
|
- | |||||
| 17 | 29675-22 | Ground Wire |
|
- | |||||
| 18 | WP210720 | Rivet (Replaces: 26397-2) |
|
$ 12.14 | |||||
| 19 | 68600-1 | Knob, Control |
|
- | |||||
| 20 | 60083-1 | Cover, Temperature Control |
|
- | |||||
| 20 | 405012-1 | Screw |
|
- | |||||
| 21 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 22 | 4008-12 | Plastic Tube |
|
- | |||||
| 23 | 29675-28 | Ground Wire |
|
- | |||||
| 24 | 60416-1 | Shelf |
|
- | |||||
| 25 | 60414-1 | Trim |
|
- | |||||
| 26 | 66654-47 | Pan, Meat |
|
- | |||||
| 27 | 60132-68 | Handle |
|
- | |||||
| 28 | 60075-7 | Cover, Meat Pan |
|
- | |||||
| 29 | 60096-8 | Rail, Shelf Support (rt) |
|
- | |||||
| 30 | 400037-28 | Screw |
|
- | |||||
| 30 | 60096-7 | Rail, Shelf Support (lt) |
|
- | |||||
| 31 | 60417-4 | Shelf |
|
- | |||||
| 32 | 60414-1 | Trim |
|
- | |||||
| 33 | 66834-1 | Shelf, Crisper |
|
- | |||||
| 34 | 68221-123 | Pan, Crisper |
|
- | |||||
| 35 | 60454-1 | Trim |
|
- | |||||
| 36 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) |
|
$ 3.35 | |||||
| 37 | 68869-1 | Wire Harness |
|
- | |||||
| 37 | 68434-1-WW | Divider, Mullion (wht) |
|
- | |||||
| 37 | 65275-23 | Screw |
|
- | |||||
| 38 | 68830-1 | Heater Wire |
|
- | |||||
| 39 | 68577-1 | Insulation |
|
- | |||||
| 39 | 60140-1 | Insulation |
|
- | |||||
| 40 | W11117769 | Leg, Leveling (Replaces: 6012-8) |
|
Immediately | $ 16.61 | ||||
| 41 | 60237-37 | Kickplate |
|
- | |||||
| 42 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 42 | 60100-1 | Clip, Kickplate |
|
$ 5.85 | |||||
| 43 | 29834-2 | Wheel |
|
- | |||||
| 44 | 29835-2 | Pin, Wheel |
|
- | |||||
| 45 | 60216-1 | Clip |
|
- | |||||
| 46 | 60583-1 | Bracket, Switch |
|
- | |||||
| 47 | 60585-1 | Switch, Mullion Heater |
|
- | |||||
| 47 | 402013-1 | Screw |
|
- | |||||
| 48 | 67636-1 | Crank, Frz. Control |
|
- | |||||
| 49 | 67493-1 | Cover, Crank |
|
- | |||||
| 50 | 60132-66 | Handle |
|
- | |||||
| 51 | 60148-4 | Seal, Crisper Shelf |
|
- |
