SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

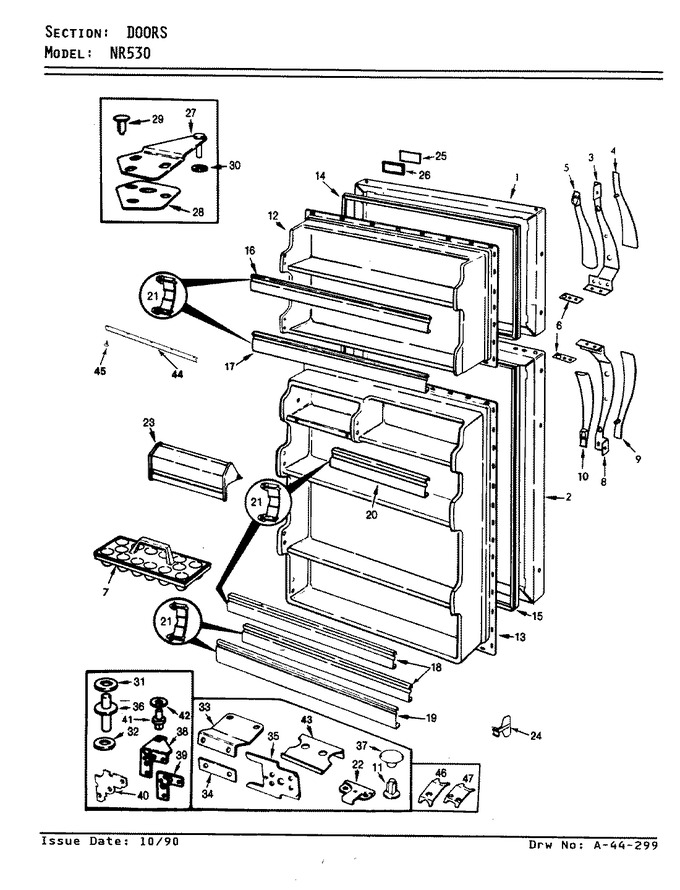

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68472-1-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	68471-1-AM		Panel, F.f. Door (alm)		Appelez-nous	-
3	66255-1		Door Handle		Appelez-nous	-
4	60451-8		Insert		Appelez-nous	-
5	60580-3		Insert		Appelez-nous	-
6	68776-1		Shim Handle----na		Appelez-nous	-
7	60621-7		Tray, Egg		Appelez-nous	-
8	66255-2		Door Handle		Appelez-nous	-
8	9986-122		Screw		Appelez-nous	-
9	60451-8		Insert		Appelez-nous	-
10	9986-112		Screw		Appelez-nous	-
10	60580-3		Insert		Appelez-nous	-
11	55782-6		Plug Button (almond)		Appelez-nous	-
12	65929-19		Liner, Door		Appelez-nous	-
13	9986-12		Screw,door Liner		Appelez-nous	-
13	65934-13		Liner, Door		Appelez-nous	-
14	66199-3		Gasket, Door		Appelez-nous	-
15	66199-4		Gasket, Door		Appelez-nous	-
16	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
17	WP61003045		Trim, Door Shelf   (Replaces: 65151-102)				$ 129.55
18	WP61003045		Trim, Door Shelf   (Replaces: 65151-93)				$ 129.55
19	WP61003045		Trim, Door Shelf   (Replaces: 65151-111)				$ 129.55
20	WP61003045		Trim, Door Shelf   (Replaces: 65151-28)				$ 129.55
21	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
22	60419-10		Door Stop		Appelez-nous	-
23	66184-189		Door, Dairy		Appelez-nous	-
24	64097-14		Organizer, Shelf		Appelez-nous	-
25	65547-2		Insert, Nameplate		Appelez-nous	-
26	68951-1		Nameplate Bezel		Appelez-nous	-
27	53709-20		Hinge, Upper		Appelez-nous	-
28	65031-1		Shim, Upper Hinge		Appelez-nous	-
29	56144-9		Plug Button, Hinge Screw (alm)		Appelez-nous	-
30	54233-1		Washer				$ 7.71
31	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
32	54233-2		Washer		Appelez-nous	-
32	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
33	68811-2		Hinge, Center		Appelez-nous	-
34	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
35	65275-24		Screw		Appelez-nous	-
35	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
36	67322-1		Pin, Center Hinge		Appelez-nous	-
37	56186-6		Plug Button, (almond)		Appelez-nous	-
38	67714-6		Hinge, Lower		Appelez-nous	-
38	403100-1		Screw		Appelez-nous	-
39	60626-1		Shim, Lower Hinge		Appelez-nous	-
40	403100-1		Screw		Appelez-nous	-
40	65790-3		Tapping Plate		Appelez-nous	-
41	68788-1		Hinge Pin		Appelez-nous	-
42	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
43	9986-108		Screw		Appelez-nous	-
43	60030-1		Door Stop		Appelez-nous	-
44	68544-1		Seal, Secondary		Appelez-nous	-
45	52447-4		Clip		Appelez-nous	-
46	56209-3		Clip, Stop Screw		Appelez-nous	-
47	60123-2		Clip, Stop Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
