SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System

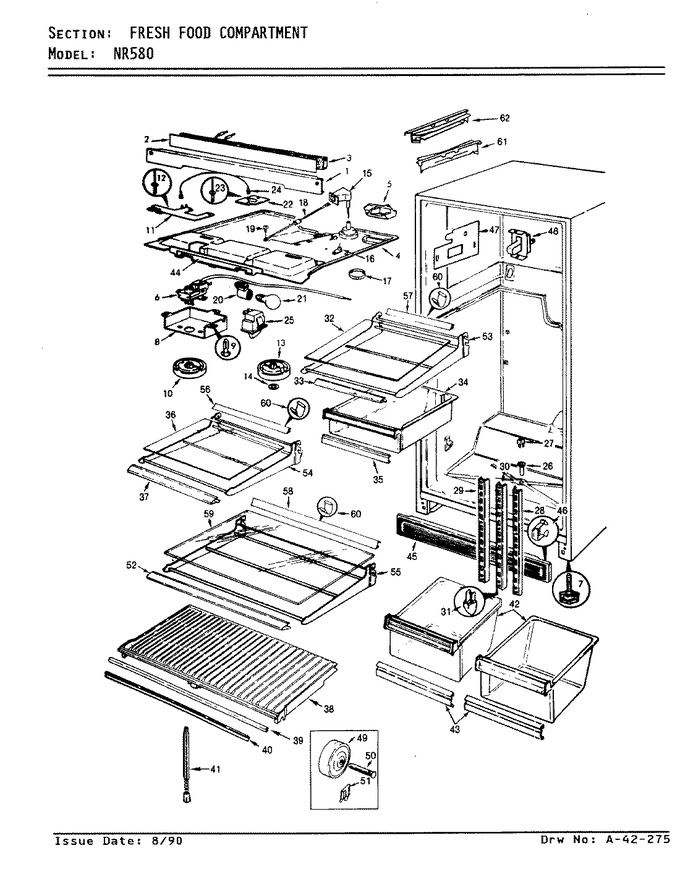

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68434-2-AM		Divider, Mullion (alm)		Appelez-nous	-
1	65275-23		Screw		Appelez-nous	-
2	68831-1		Heater Wire		Appelez-nous	-
3	68903-1		Wire Harness		Appelez-nous	-
3	68577-2		Insulation		Appelez-nous	-
3	60140-2		Insulation		Appelez-nous	-
4	68531-2		Top, F.f. Compartment		Appelez-nous	-
5	60120-2		Deflector		Appelez-nous	-
6	WP68601-6		Control, Temperature   (Replaces: 68119-2)			Immediately	$ 233.80
6	406013-1		Screw		Appelez-nous	-
7	W11117769		Leg, Leveling   (Replaces: 68664-1)			Immediately	$ 16.61
8	405012-1		Screw		Appelez-nous	-
8	60083-1		Cover, Temperature Control		Appelez-nous	-
9	28013-2		Rivet, Air Tunnel		Appelez-nous	-
10	68600-1		Knob, Control		Appelez-nous	-
11	60147-1		Bracket, Control		Appelez-nous	-
12	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
13	68600-2		Knob, Frz.		Appelez-nous	-
14	420092-900		Washer, Spring		Appelez-nous	-
15	67558-2		Venturi Orifice		Appelez-nous	-
16	67636-1		Crank, Frz. Control		Appelez-nous	-
17	67493-1		Cover, Crank		Appelez-nous	-
18	67499-3		Rod, Freezer Control		Appelez-nous	-
19	420005-1		Washer, Control Rod		Appelez-nous	-
19	WP59002061		Screw   (Replaces: 65275-13)				$ 6.98
20	60577-1		Socket, Light		Appelez-nous	-
21	40A15		Bulb, Light (40 Watt)   (Replaces: 31956)			Immediately	$ 1.98
22	60147-2		Bracket, Light Socket		Appelez-nous	-
23	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
24	29675-28		Ground Wire		Appelez-nous	-
25	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
25	54653-28		Cord, Switch/light		Appelez-nous	-
26	54531-8		Grommet		Appelez-nous	-
27	65039-1		Cap, Drain Tube		Appelez-nous	-
28	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
29	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
30	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
31	60340-1		End Cap, Center Rail		Appelez-nous	-
31	400037-28		Screw		Appelez-nous	-
32	68316-10		Shelf, Glass		Appelez-nous	-
33	60524-3		Trim		Appelez-nous	-
34	66524-16		Pan, Meat		Appelez-nous	-
35	60365-54		Handle, Meat Pan		Appelez-nous	-
36	68316-7		Shelf, Glass		Appelez-nous	-
37	60524-3		Trim		Appelez-nous	-
38	60019-6		Shelf, Crisper		Appelez-nous	-
39	60454-2		Trim		Appelez-nous	-
40	60148-5		Seal, Crisper Shelf		Appelez-nous	-
41	12001957		Support, Crisper Shelf   (Replaces: 66105-1)				$ 3.35
42	68222-438		Pan, Crisper		Appelez-nous	-
43	60365-51		Trim		Appelez-nous	-
44	60571-82		Insert		Appelez-nous	-
45	60138-10		Kickplate		Appelez-nous	-
46	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
46	60100-1		Clip, Kickplate				$ 5.85
47	60583-1		Bracket, Switch		Appelez-nous	-
48	60585-1		Switch, Mullion Heater		Appelez-nous	-
48	402013-1		Screw		Appelez-nous	-
49	29834-2		Wheel		Appelez-nous	-
50	29835-2		Pin, Wheel		Appelez-nous	-
51	60216-1		Clip		Appelez-nous	-
52	60524-2		Trim		Appelez-nous	-
53	60570-13		Frame, Shelf		Appelez-nous	-
54	60570-13		Frame, Shelf		Appelez-nous	-
55	60570-25		Frame, Shelf		Appelez-nous	-
56	65276-3		Trim		Appelez-nous	-
57	65276-3		Trim		Appelez-nous	-
58	65276-33		Trim		Appelez-nous	-
59	68316-8		Shelf, Glass		Appelez-nous	-
60	66333-1		Clip, Shelf Trim		Appelez-nous	-
61	66813-1		Rail, Meat Pan (lt)		Appelez-nous	-
62	66814-1		Rail, Meat Pan (rt)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
