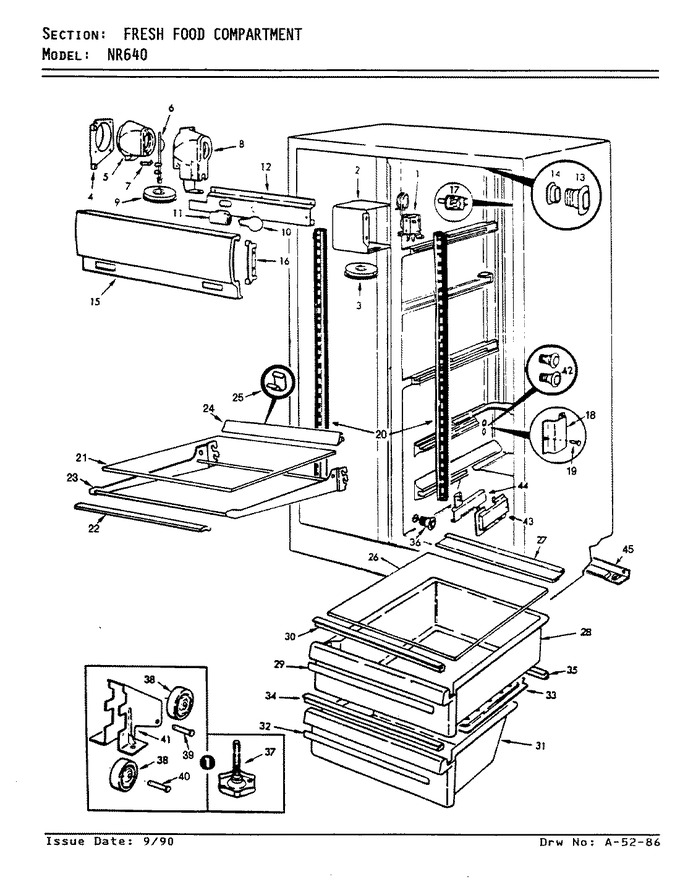

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Fresh Food Compartment


03 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	401012-1		Screw, Control Mounting		Appelez-nous	-
1	52881-39		Control, Temperature		Appelez-nous	-
2	53682-10		Housing, Temperature Control		Appelez-nous	-
2	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
3	29893-7		Knob, Temp. Control		Appelez-nous	-
4	53835-2		Orifice, Freezer Control		Appelez-nous	-
5	58767-1		Insulation, Housing		Appelez-nous	-
6	400001-1		Screw		Appelez-nous	-
6	68610-1		Baffle		Appelez-nous	-
7	52648-1		Spring, Baffle		Appelez-nous	-
8	67354-1		Housing, Frz. Control		Appelez-nous	-
9	29893-12		Knob		Appelez-nous	-
10	55771-0		Bulb, Light		Appelez-nous	-
11	29814-2		Receptacle, Light		Appelez-nous	-
12	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
12	59740-1		Housing		Appelez-nous	-
13	57410-1		Tunnel		Appelez-nous	-
14	57411-1		Retainer		Appelez-nous	-
15	65578-10		Shield, Light		Appelez-nous	-
16	53686-2		Support		Appelez-nous	-
16	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
17	56432-2		Switch		Appelez-nous	-
18	62128-1		Air Deflector		Appelez-nous	-
19	28013-2		Rivet, Air Tunnel		Appelez-nous	-
20	58381-4		Rail, Shelf Support		Appelez-nous	-
20	400037-28		Screw		Appelez-nous	-
21	68316-11		Shelf, Glass		Appelez-nous	-
22	65614-1		Trim		Appelez-nous	-
23	65618-1		Frame, Shelf		Appelez-nous	-
24	65276-29		Trim		Appelez-nous	-
25	66333-1		Clip, Shelf Trim		Appelez-nous	-
26	68316-12		Shelf, Glass		Appelez-nous	-
27	68157-1		Seal, Crisper Pan (rear)		Appelez-nous	-
28	66654-24		Pan, Crisper		Appelez-nous	-
29	68124-75		Trim		Appelez-nous	-
30	65593-1		Seal		Appelez-nous	-
31	66654-34		Pan, Crisper		Appelez-nous	-
32	68124-75		Trim		Appelez-nous	-
33	65608-3		Cover, Meat Pan		Appelez-nous	-
34	65648-1		Seal, Meat Pan (front)		Appelez-nous	-
35	65649-1		Seal, Meat Pan (rear)		Appelez-nous	-
36	53726-2		Tunnel, Air (meat)		Appelez-nous	-
37	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
38	29834-2		Wheel		Appelez-nous	-
39	64965-3		Pin, Wheel (rear)		Appelez-nous	-
40	64965-1		Pin, Wheel		Appelez-nous	-
41	52846-1		Bracket		Appelez-nous	-
41	400062-1		Screw		Appelez-nous	-
42	53727-1		Retainer, Air Tunnel		Appelez-nous	-
42	53726-1		Air Tunnel		Appelez-nous	-
43	65737-2		Control Housing		Appelez-nous	-
44	56686-4		Clip		Appelez-nous	-
44	65736-1		Slide Control, (meat)		Appelez-nous	-
45	3400518		Screw   (Replaces: 65275-42)				$ 11.68
45	67255-1		Support Rail		Appelez-nous	-
