01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System

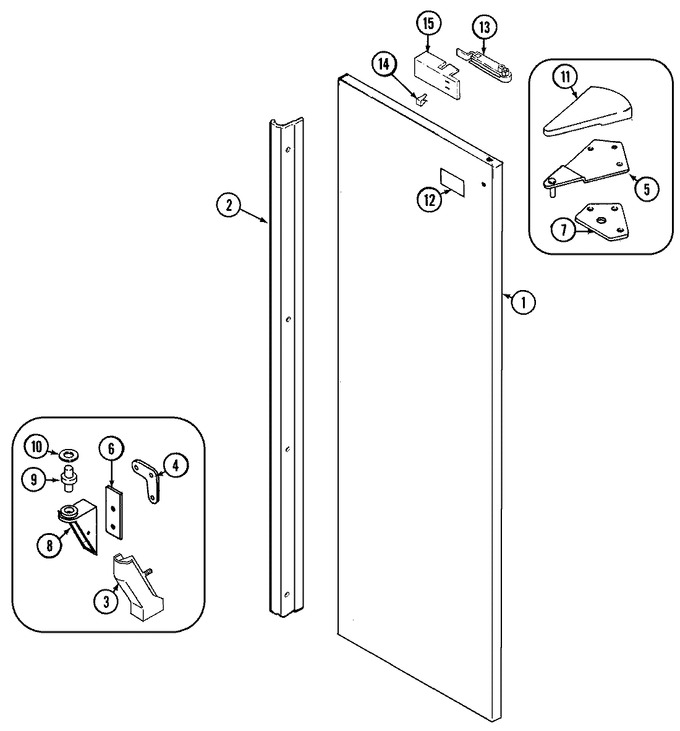

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	495034-900		Plug Button, Door	10	Appelez-nous	-
1	72347-1-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	12001073		Kit, Handle Assy. (alm)	10	Appelez-nous	-
2	65275-37		Screw, Handle	10	Appelez-nous	-
3	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
4	65275-59		Screw	10	Appelez-nous	-
4	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 65275-52)	10			$ 7.00
5	53709-28		Hinge, Upper	10	Appelez-nous	-
6	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
7	65031-1		Shim, Upper Hinge	10	Appelez-nous	-
8	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
8	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
9	69845-1		Pin, Lower Hinge	10			$ 44.55
10	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
11	66982-12		Insert, Nameplate (holiday)	10	Appelez-nous	-
11	66986-6		Bezel, Nameplate	10	Appelez-nous	-
