SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Inner Door


03 - Freezer Outer Door


04 - Fresh Food Compartment


05 - Fresh Food Inner Door


06 - Fresh Food Outer Door


07 - Optional Ice Maker Kit (ice)


08 - Shelves & Accessories


09 - Unit Compartment & System

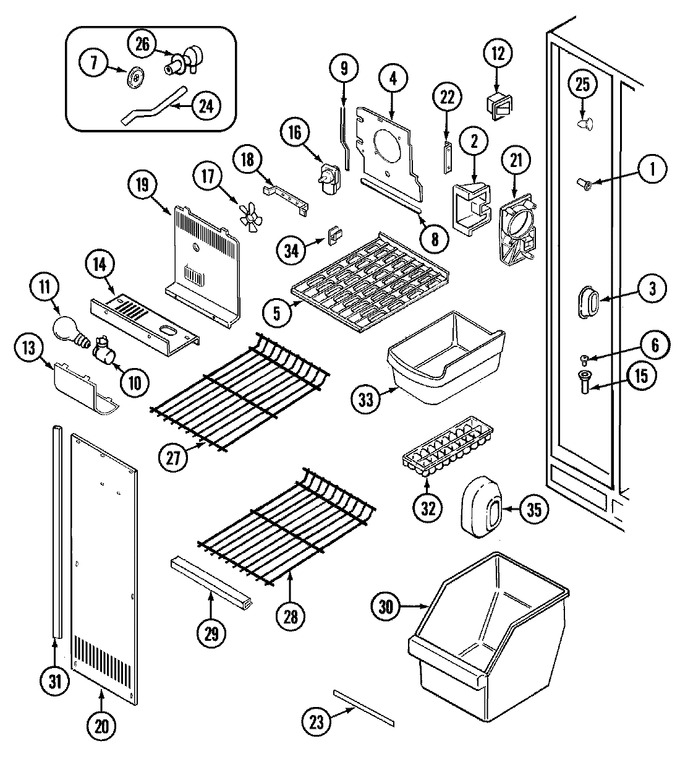

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67466-1		Cup, Shelf	10	Appelez-nous	-
2	67353-1		Shield, Air Directional	10	Appelez-nous	-
3	70034-1		Retainer, Air Return	10	Appelez-nous	-
4	67297-5		Cover, Coil (upper)	10	Appelez-nous	-
5	67837-1		Insulation, Air Return	10	Appelez-nous	-
6	52526-1		Grommet	10	Appelez-nous	-
7	68187-1		Cap, Connector	10	Appelez-nous	-
8	68946-4		Seal	10	Appelez-nous	-
9	66325-21		Seal (44``)	10	Appelez-nous	-
10	69314-1		Seal Cover (side)	10	Appelez-nous	-
11	66636-153		Drawer	10	Appelez-nous	-
12	61001163		Trim, Shelf	10	Appelez-nous	-
13	66603-42		Shelf, 2,3, & 4	10	Appelez-nous	-
14	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
14	67344-3		Support, Light Shield	10	Appelez-nous	-
15	26527-11		Tube, Drain	10	Appelez-nous	-
16	WP61004888		Motor, Fan Evaporator   (Replaces: 69298-1)	10		Immediately	$ 104.99
16	70039-1		Wire Harness Freezer	10	Appelez-nous	-
16	403067-1		Screw	10	Appelez-nous	-
17	420092-900		Washer, Spring	10	Appelez-nous	-
17	52120-4		Blade, Evaporator Fan	10	Appelez-nous	-
18	64856-1		Bracket, Fan Motor	10	Appelez-nous	-
18	WP488729		Screw   (Replaces: 9986-45)	10		Immediately	$ 7.01
19	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
19	67225-1		Shield, Fan	10	Appelez-nous	-
20	W11233072		Screw   (Replaces: 400015-36)	10		Immediately	$ 12.62
20	67335-7		Cover, Coil (lower)	10	Appelez-nous	-
21	67352-1		Orifice, Frz. Control (outlet)	10	Appelez-nous	-
22	WP489478		Screw   (Replaces: 400017-1)	10			$ 6.98
22	67288-1		Bracket, Mounting	10	Appelez-nous	-
23	66603-37		Shelf, 1	10	Appelez-nous	-
24	67593-3		Plug, Tube	10	Appelez-nous	-
24	67676-1		Tube, Fill	10	Appelez-nous	-
25	67557-2		Plug Button, Air Duct & I/m	10	Appelez-nous	-
26	69219-1		Grommet	10	Appelez-nous	-
