View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

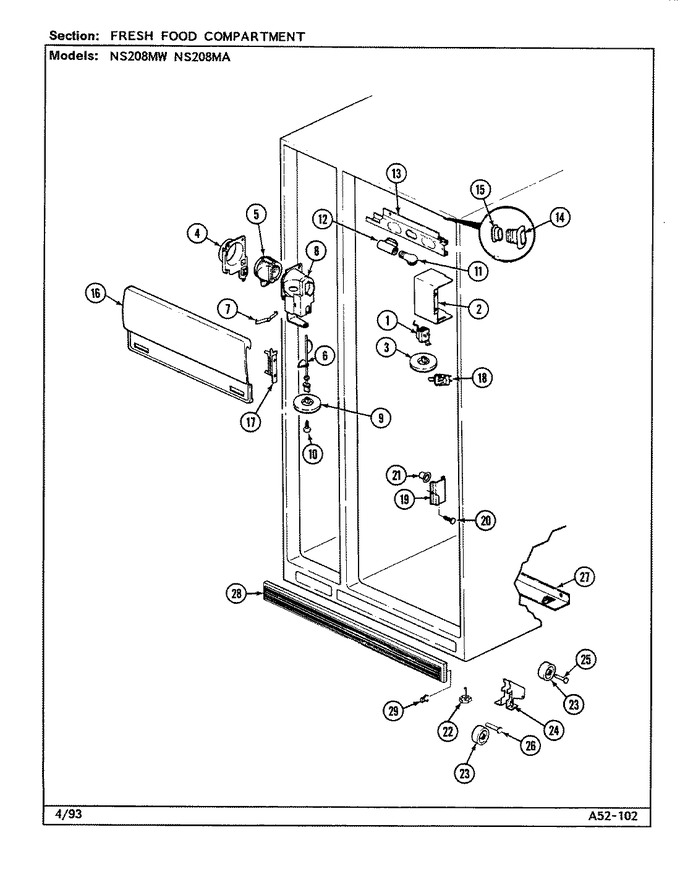

01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Optional Ice Maker Kit
06 - Shelves & Accessories
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 1 | 67692-1 | Insulation, Control |
|
- | |||||
| 1 | 69694-5 | Control, Temperature |
|
- | |||||
| 2 | 67126-1 | Housing, Temperature Control |
|
- | |||||
| 2 | 400053-1 | Screw |
|
- | |||||
| 3 | 29893-7 | Knob, Temp. Control |
|
- | |||||
| 4 | 67351-1 | Orifice, Frz. Control (inlet) |
|
- | |||||
| 5 | 64958-1 | Spacer Air Inlet |
|
- | |||||
| 5 | 58767-1 | Insulation, Housing |
|
- | |||||
| 6 | 68610-2 | Baffle, Freezer Control |
|
- | |||||
| 7 | 52648-1 | Spring, Baffle |
|
- | |||||
| 8 | 400027-1 | Screw |
|
- | |||||
| 8 | 67354-1 | Housing, Frz. Control |
|
- | |||||
| 9 | 29893-12 | Knob |
|
- | |||||
| 10 | 402005-103 | Screw |
|
- | |||||
| 11 | W10887190 | Bulb, Light (60w) (Replaces: 55771-2) |
|
Immediately | $ 16.48 | ||||
| 12 | 29814-2 | Receptacle, Light |
|
- | |||||
| 13 | 69193-1 | Housing, Lite & Wire |
|
- | |||||
| 13 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 14 | 69198-2 | Tunnel |
|
- | |||||
| 15 | 57411-1 | Retainer |
|
- | |||||
| 16 | 69194-1 | Shield, Light Ref |
|
- | |||||
| 17 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 17 | 495032-900 | Plug |
|
- | |||||
| 17 | 67125-1 | Support, Light Shield |
|
- | |||||
| 18 | W11384469 | Switch, Light (Replaces: 66987-1) |
|
Immediately | $ 33.51 | ||||
| 19 | 62128-1 | Air Deflector |
|
- | |||||
| 20 | 28013-2 | Rivet, Air Tunnel |
|
- | |||||
| 21 | 67684-1 | Tunnel, Air Return |
|
- | |||||
| 21 | 67837-1 | Insulation, Air Return |
|
- | |||||
| 22 | 69810-1 | Cap, Leveling Leg |
|
- | |||||
| 22 | W11117769 | Leg, Leveling (Replaces: 68664-1) |
|
Immediately | $ 16.61 | ||||
| 23 | 69812-1 | Wheel |
|
- | |||||
| 24 | 52846-1 | Bracket |
|
- | |||||
| 24 | 400062-1 | Screw |
|
- | |||||
| 25 | 64965-3 | Pin, Wheel (rear) |
|
- | |||||
| 26 | 64965-3 | Pin, Wheel (rear) |
|
- | |||||
| 27 | 67255-1 | Support Rail |
|
- | |||||
| 27 | 3400518 | Screw (Replaces: 65275-42) |
|
$ 11.68 | |||||
| 28 | 68981-1 | Kickplate |
|
- | |||||
| 29 | WP489478 | Screw (Replaces: 400017-1) |
|
$ 6.98 | |||||
| 29 | 60100-1 | Clip, Kickplate |
|
$ 5.85 |
