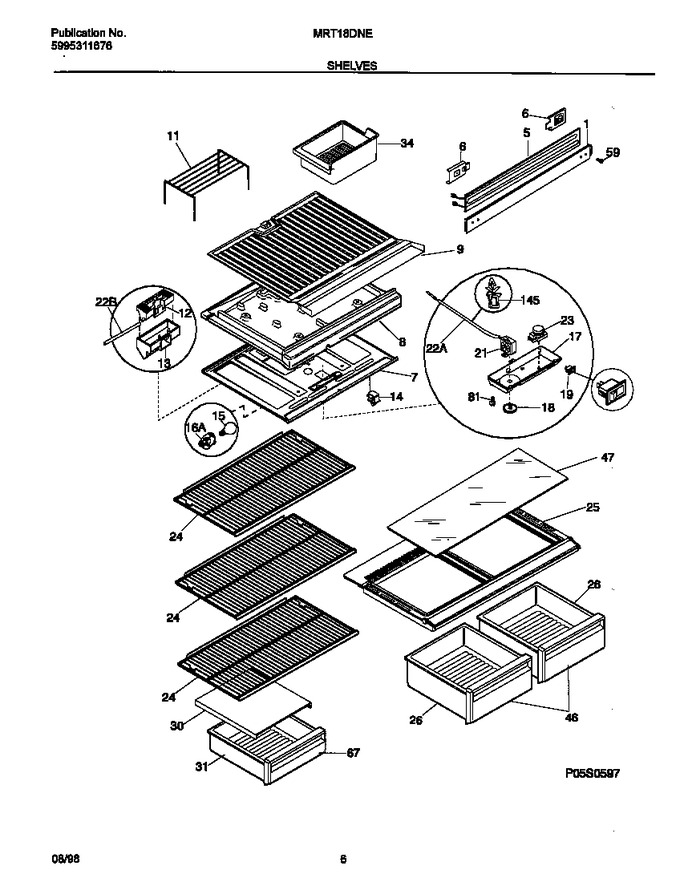

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218781701 | Mullion,white |
|
- | |||||
| 5 | 218781003 | รบ Heater-mullion |
|
$ 103.79 | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 218814800 | Top Panel-refr, Hasc |
|
- | |||||
| 8 | 218814600 | Divider, Styrofoam |
|
- | |||||
| 9 | 218814700 | Bottom Panel-frzr |
|
$ 288.94 | |||||
| 10 | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11 | 5303282284 | Shelf-freezer,``table Type`` |
|
Immediately | $ 88.05 | ||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 17 | 5303321455 | Control Box |
|
$ 46.16 | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304404821 | Control-temperature (Replaces: 5303321453) |
|
Immediately | $ 164.57 | ||||
| 22 | 218731104 | Tube, Pvc, White, @ Air Deflector, Insulator |
|
$ 35.64 | |||||
| 22 | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer-defrost (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303307451 | Shelf, Sliding, Wire, Refr Section |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, With Beam, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 30 | 5303285319 | Cover-meat Pan |
|
$ 100.13 | |||||
| 31 | 3206209 | Pan-meat |
|
$ 183.70 | |||||
| 46 | 5303304709 | Front-crisper Pan |
|
$ 100.28 | |||||
| 47 | 5303281398 | Insert-pan Cover, Glass |
|
$ 114.29 | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 67 | 5303309966 | Front-meat Pan |
|
- | |||||
| 81 | 5303001380 | Screw |
|
- | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *03811 | 3018900 | Harness-wiring, Control/divider |
|
- | |||||
| *03812 | 5303001449 | Seal-air Deflector,foam Plastic ,(2) |
|
$ 2.12 | |||||
| *03813 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *03814 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
