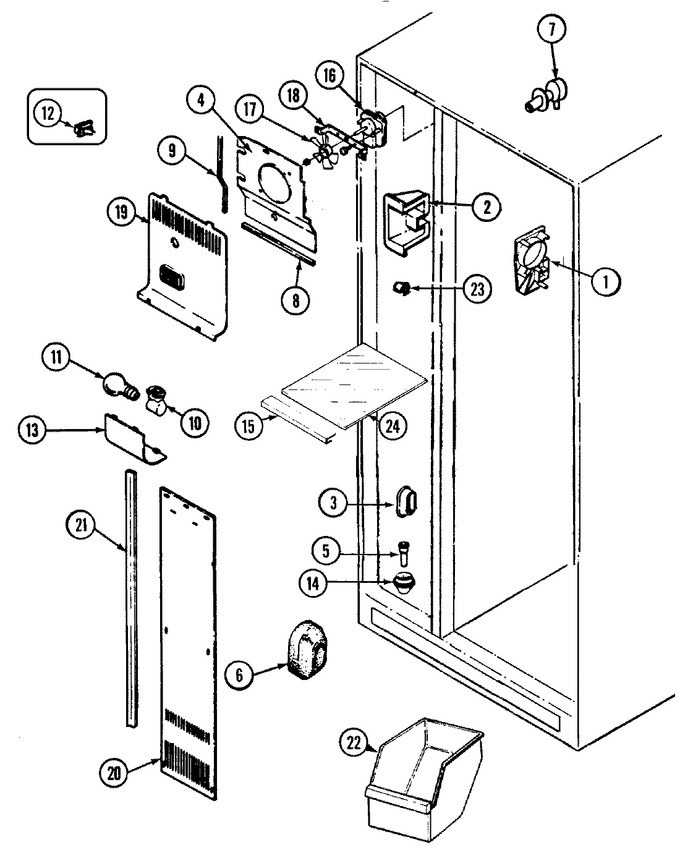

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 68187-1 | Cap, Connector | 10 |
|
- | ||||
| 1 | 67352-1 | Orifice, Frz. Control (outlet) | 10 |
|
- | ||||
| 2 | 67557-2 | Plug Button, Air Duct & I/m | 10 |
|
- | ||||
| 2 | 67353-1 | Shield, Air Directional | 10 |
|
- | ||||
| 3 | 70034-1 | Retainer, Air Return | 10 |
|
- | ||||
| 3 | 67676-1 | Tube, Fill | 10 |
|
- | ||||
| 4 | 67297-6 | Cover, Coil Upper | 10 |
|
- | ||||
| 5 | 26527-11 | Tube, Drain | 10 |
|
- | ||||
| 6 | 67837-1 | Insulation, Air Return | 10 |
|
- | ||||
| 7 | 69219-1 | Grommet | 10 |
|
- | ||||
| 8 | 68946-6 | Seal | 10 |
|
- | ||||
| 9 | 66325-20 | Seal | 10 |
|
$ 8.22 | ||||
| 10 | 68974-3 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | W11679940 | Bulb, Light (Replaces: 31956-1) | 10 |
|
Immediately | $ 10.17 | |||
| 12 | W11384469 | Switch, Light (Replaces: 66987-1) | 10 |
|
Immediately | $ 33.51 | |||
| 13 | 67292-1 | Shield, Light | 10 |
|
- | ||||
| 14 | 52526-1 | Grommet | 10 |
|
- | ||||
| 15 | 70137-1 | Trim, Shelf | 10 |
|
- | ||||
| 16 | WP61004888 | Motor, Fan Evaporator (Replaces: 69298-1) | 10 |
|
Immediately | $ 104.99 | |||
| 16 | 70039-1 | Wire Harness Freezer | 10 |
|
- | ||||
| 17 | 420092-900 | Washer, Spring | 10 |
|
- | ||||
| 17 | 52120-4 | Blade, Evaporator Fan | 10 |
|
- | ||||
| 18 | WP488729 | Screw (Replaces: 9986-45) | 10 |
|
Immediately | $ 7.01 | |||
| 18 | 64856-3 | Bracket | 10 |
|
- | ||||
| 19 | 69732-2 | Shield, Fan | 10 |
|
- | ||||
| 20 | 67335-2 | Cover, Coil Lower | 10 |
|
- | ||||
| 20 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 21 | 69314-1 | Seal Cover (side) | 10 |
|
- | ||||
| 22 | 66636-156 | Trim, Shelf | 10 |
|
- | ||||
| 23 | 67466-1 | Cup, Shelf | 10 |
|
- | ||||
| 24 | 68139-24 | Shelf, 2,3 & 4 Freezer (glass) | 10 |
|
- |
