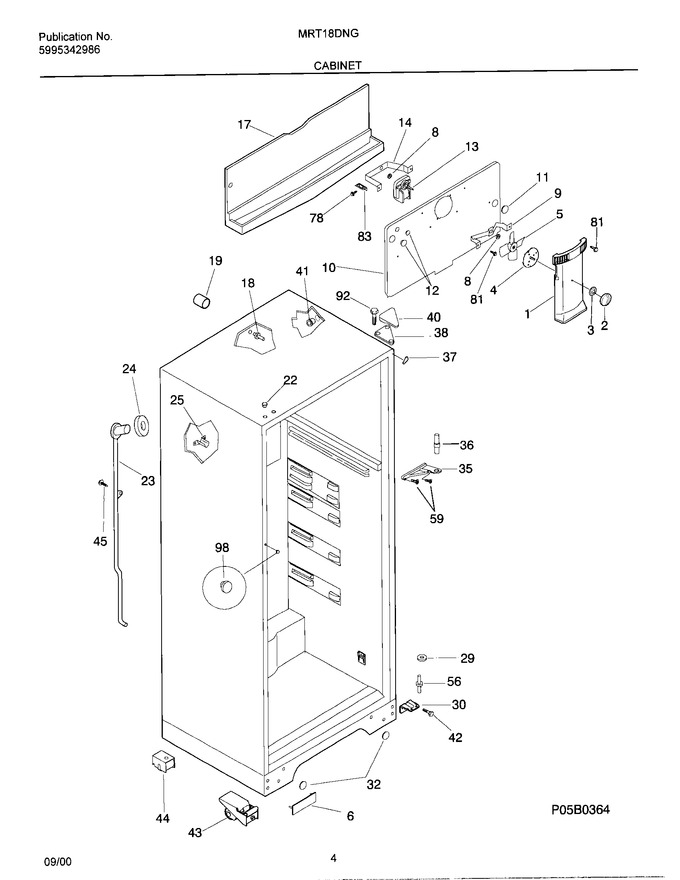

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218672501 | Cover-fan |
|
- | |||||
| 2 | 5303307351 | Knob, Damper Control |
|
$ 32.71 | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 218722200 | Damper-fan Cover, Black |
|
$ 59.80 | |||||
| 5 | 5308000010 | Fan Blade, Black (Replaces: 218649000) |
|
Immediately | $ 49.03 | ||||
| 6 | 218448301 | Cover, White, Lwr Hinge Hole |
|
$ 15.91 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 218985301 | Cover-evap Coil |
|
- | |||||
| 10 | 5303209814 | Nut, ``u`` Type, No. 8-15(a), Fan Motor Mount |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 215079100 | Plug-wtr Inlet Tube, Round |
|
$ 6.25 | |||||
| 12 | 215079000 | Plug-harness Hole, Round |
|
$ 8.61 | |||||
| 13 | 5300158289 | Motor-evap Fan (Replaces: 218878701) |
|
Immediately | $ 149.94 | ||||
| 14 | 5303322992 | Bracket-motor Mtg, Rear |
|
$ 46.57 | |||||
| 17 | 218973201 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support-evap Cover |
|
$ 25.20 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 22 | 215774901 | Plug-button,white ,upr Hinge Holes |
|
Immediately | $ 18.20 | ||||
| 23 | 5303269702 | Tube-drain, W/seal Ring |
|
$ 104.63 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 215774100 | Spout-drain Tube, W/mounting Pins |
|
- | |||||
| 29 | 5308000007 | Washer, .34 X .62 X .05, Nylon |
|
- | |||||
| 29 | 5308000186 | Washer, .34 X .62 X .10, Nylon |
|
Immediately | $ 6.02 | ||||
| 30 | 215882300 | Tapping Plate, Lower Hinge |
|
- | |||||
| 30 | 5304409595 | Bracket-lower Hinge,zinc Plate |
|
$ 229.11 | |||||
| 32 | 215217701 | Plug-button, White, Cabinet Base |
|
$ 6.56 | |||||
| 35 | 218220101 | Bracket-ctr Hinge, Light Gray |
|
- | |||||
| 36 | 218251300 | Pin-center Hinge |
|
$ 59.54 | |||||
| 37 | 5303321081 | Trim-cabinet Corner, White |
|
$ 8.82 | |||||
| 38 | 3206100 | Bracket-upper Hinge |
|
- | |||||
| 40 | 3206101 | Cover-upper Hinge, White |
|
$ 49.25 | |||||
| 41 | 5304509705 | Grommet,shelf Mtg ,0.69`` ,rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 41 | 5304500407 | Grommet,shelf Mtg ,1.25`` ,lh (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 42 | 215880100 | Screw-hinge Mtg, Hex Washer Head,1/4-20x0.685 |
|
- | |||||
| 43 | 5308011326 | Washer, .34 X .62 X .20, Nylon |
|
$ 9.87 | |||||
| 43 | 5308009761 | Bolt-roller, Adj |
|
$ 18.61 | |||||
| 43 | 5308009790 | ú Spring-roller Adj |
|
$ 4.30 | |||||
| 43 | 218724000 | Roller Assy, Front, Complete |
|
$ 227.18 | |||||
| 43 | 218703002 | ú Roller |
|
$ 25.62 | |||||
| 44 | 5303283014 | Roller Assy, Metal Housing |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 56 | 218220300 | Pin-lower Hinge |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming (Replaces: 218188000) |
|
$ 8.34 | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 98 | 215099701 | Plug-button,white |
|
$ 5.99 | |||||
| 5308016571 | Plug-button,cab Liner Holes |
|
$ 4.79 | ||||||
| 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
