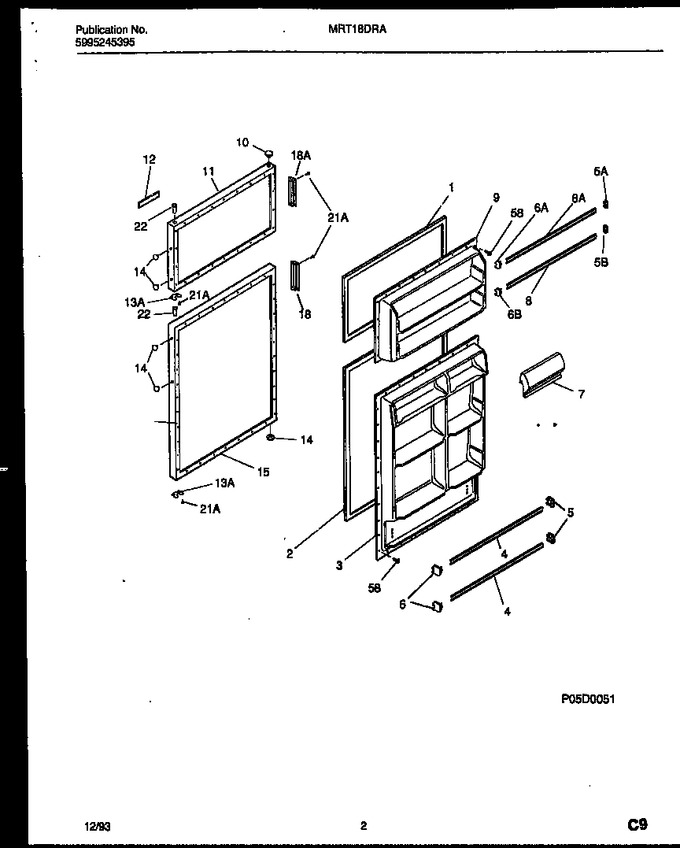

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	5303207345		Gasket-refr Door, Magnetic, Almond   (Replaces: 5303288239)			Immediately	$ 188.19
3	5303300061		Panel-inner Door, Refr		Appelez-nous	-
4	215366002		Rack-door   (Replaces: 215366021)			Immediately	$ 65.83
5	3206150		Support, Door Rack, Rh				$ 12.58
6	3206151		Support-door Rack, Lh		Appelez-nous	-
7	5303300060		Door-dairy		Appelez-nous	-
8	215366020		Rack-door, Long/wide		Appelez-nous	-
9	5303295730		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917234		Panel-frzr Door, Almond, W/ Insulation		Appelez-nous	-
12	215503711		Frame-nameplate, Almond, W/mtg Tape		Appelez-nous	-
14	5303000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917236		Panel-refr Door, Almond, W/ Insulation		Appelez-nous	-
18	5303273080		Handle-door, Almond		Appelez-nous	-
18	5303273079		Handle-door, White		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*90625	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop				$ 42.20
18A	5303273082		Handle-door, Almond		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Lh		Appelez-nous	-
8A	5303300237		Rack-door, Long/narrow				$ 133.93
