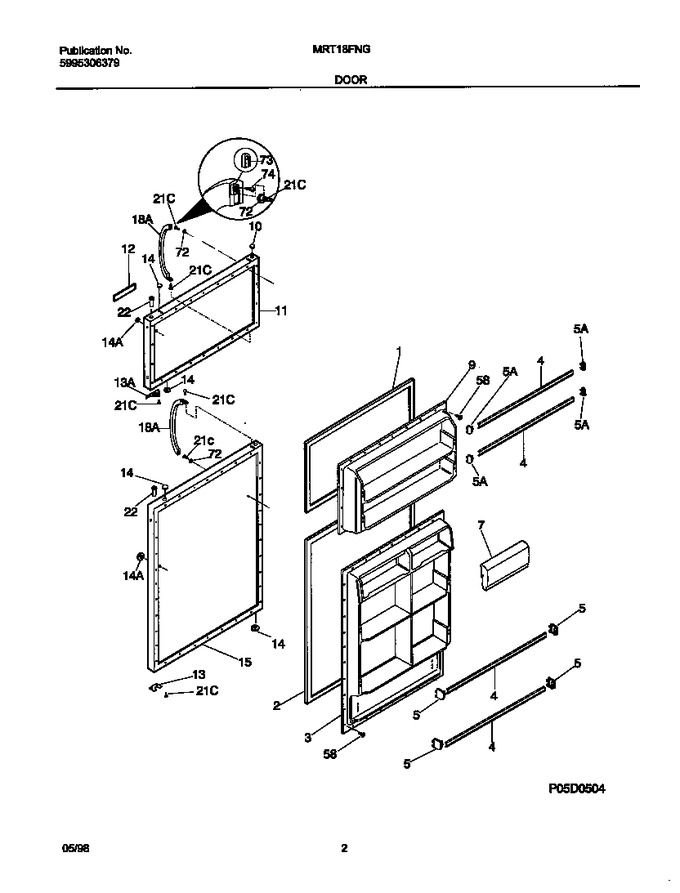

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608906		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	5303207345		Gasket-refr Door, Almond, Magnetic   (Replaces: 218730606)			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	215366002		Rack-door,23.81`` X 1.62``   (Replaces: 218027022)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack,rh/lh			Immediately	$ 11.58
7	218287801		Door-dairy, 10.71`` Wide				$ 41.48
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917807		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218428202		Frame-nameplate, Almond		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	5308000181		Plug-button, Almond		Appelez-nous	-
14	218110902		Plug-button, Almond, Refr Door Front, Upper		Appelez-nous	-
15	5303917808		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218428102		Handle-door, Almond, W/block & Screw		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd ,10-16 X 1/2 ,spec/hi-lo   (Replaces: 215503200)			Immediately	$ 7.09
*21120	215518000		Magnet-nameplate		Appelez-nous	-
*21121	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
