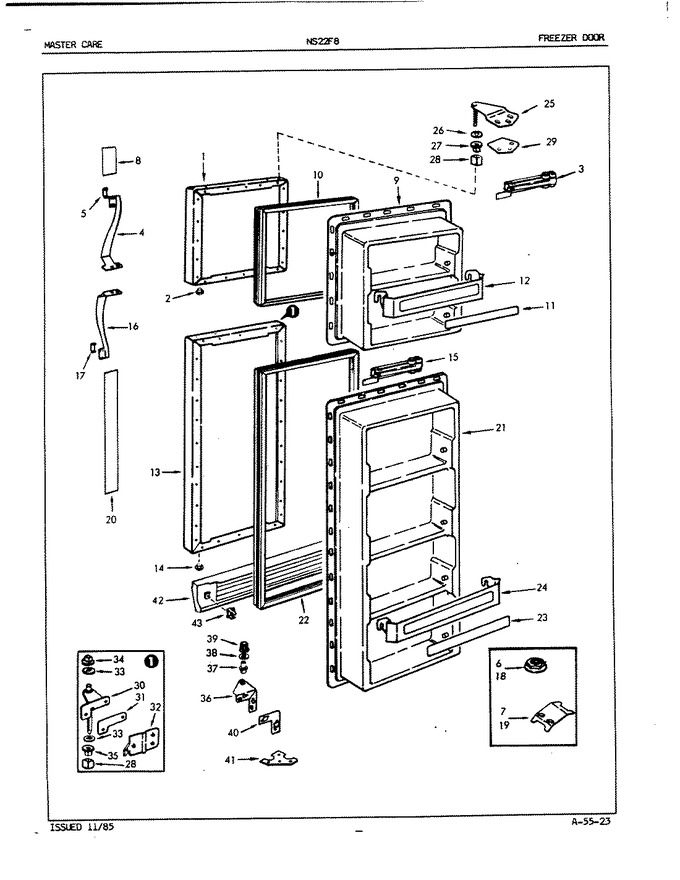

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	65980-1-AM		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	54485-1		Closer, Door		Appelez-nous	-
3	52613-1		Insulation, Closer		Appelez-nous	-
3	52614-1		Bracket, Closer		Appelez-nous	-
4	9986-122		Screw		Appelez-nous	-
4	60193-1		Handle		Appelez-nous	-
5	60111-1		Insert		Appelez-nous	-
6	434003-506		Fastener		Appelez-nous	-
7	60123-2		Clip, Stop Screw		Appelez-nous	-
8	65775-1		Upr Handle Ext		Appelez-nous	-
9	9986-12		Screw,door Liner		Appelez-nous	-
9	65695-1		Liner, Door		Appelez-nous	-
10	53712-8		Gasket		Appelez-nous	-
11	65571-7		Insert		Appelez-nous	-
12	65701-1		Shelf Front		Appelez-nous	-
13	65980-2-AM		Panel, Outer Door		Appelez-nous	-
14	495034-900		Plug Button, Door		Appelez-nous	-
15	52614-1		Bracket, Closer		Appelez-nous	-
15	52613-1		Insulation, Closer		Appelez-nous	-
15	54485-1		Closer, Door		Appelez-nous	-
16	60193-2		Handle		Appelez-nous	-
16	9986-122		Screw		Appelez-nous	-
17	60111-3		Insert		Appelez-nous	-
18	434003-506		Fastener		Appelez-nous	-
19	60123-2		Clip, Stop Screw		Appelez-nous	-
20	65775-2		Lwr Handle Ext		Appelez-nous	-
21	65696-1		Liner, Door		Appelez-nous	-
21	9986-12		Screw,door Liner		Appelez-nous	-
22	53712-15		Gasket		Appelez-nous	-
23	65571-7		Insert		Appelez-nous	-
24	65701-1		Shelf Front		Appelez-nous	-
25	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
25	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
26	52185-2		Washer		Appelez-nous	-
27	55781-1		Bushing		Appelez-nous	-
28	55990-1		Seal Sleeve		Appelez-nous	-
29	65031-1		Shim, Upper Hinge		Appelez-nous	-
30	54390-6		Hinge		Appelez-nous	-
30	9986-110		Screw		Appelez-nous	-
31	54386-4		Spacer		Appelez-nous	-
32	54031-2		Tapping Plate		Appelez-nous	-
33	52185-2		Washer		Appelez-nous	-
34	55781-2		Bushing		Appelez-nous	-
35	55781-2		Bushing		Appelez-nous	-
36	60630-10		Hiner, Lower (chrome)				$ 26.18
36	403062-5		Screw		Appelez-nous	-
37	53672-1		Pin, Lower Hinge		Appelez-nous	-
38	54233-2		Washer		Appelez-nous	-
39	66034-1		Cup   (Replaces: 55424-1)				$ 19.76
40	60626-1		Shim, Lower Hinge		Appelez-nous	-
41	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
42	58437-20		Kickplate		Appelez-nous	-
43	52854-3		Clip, Kickplate		Appelez-nous	-
