SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Unit Compartment & System

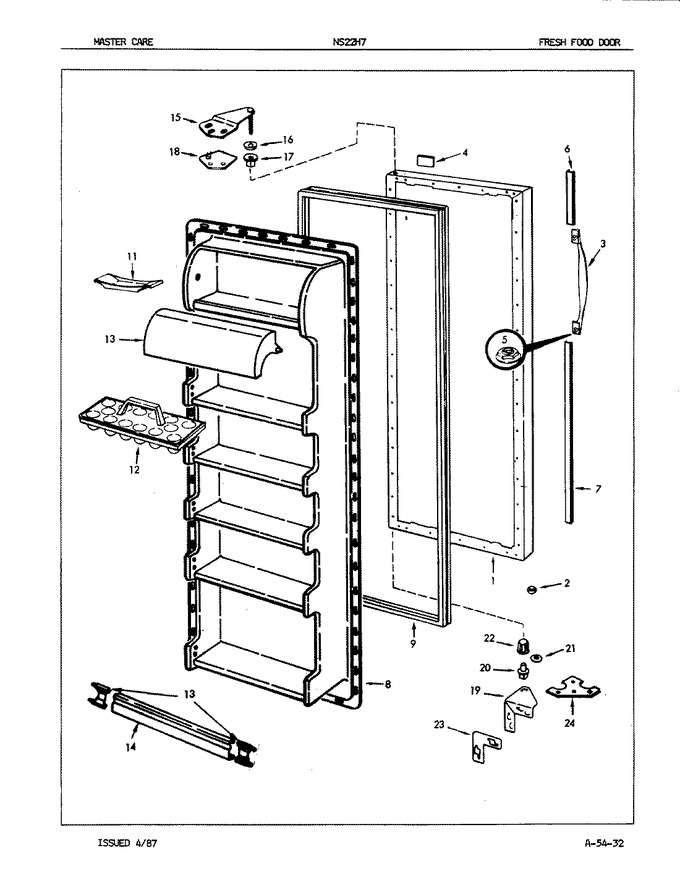

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	62391-15-WW		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	63686-5		Handle		Appelez-nous	-
4	66724-1		Insert		Appelez-nous	-
4	66612-1		Nameplate		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
6	65774-22		Handle Ext		Appelez-nous	-
7	65774-21		Handle Ext		Appelez-nous	-
8	65945-7		Liner, Door		Appelez-nous	-
8	65275-5		Screw		Appelez-nous	-
9	53712-16		Gasket		Appelez-nous	-
10	66184-132		Door, Dairy		Appelez-nous	-
11	29936-2		Tray, Butter		Appelez-nous	-
12	60066-8		Tray, Egg		Appelez-nous	-
13	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
14	WP61003045		Trim, Door Shelf   (Replaces: 65151-207)				$ 129.55
15	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
15	53709-18		Door Hinge, Upper		Appelez-nous	-
16	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
17	66036-1		Bushing,top/center Hinge		Appelez-nous	-
18	65031-1		Shim, Upper Hinge		Appelez-nous	-
19	403062-5		Screw		Appelez-nous	-
19	60630-12		Hinge, Lower		Appelez-nous	-
20	53672-1		Pin, Lower Hinge		Appelez-nous	-
21	54233-1		Washer				$ 7.71
22	66034-1		Bushing, Lower Hinge				$ 19.76
23	60626-1		Shim, Lower Hinge		Appelez-nous	-
24	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
