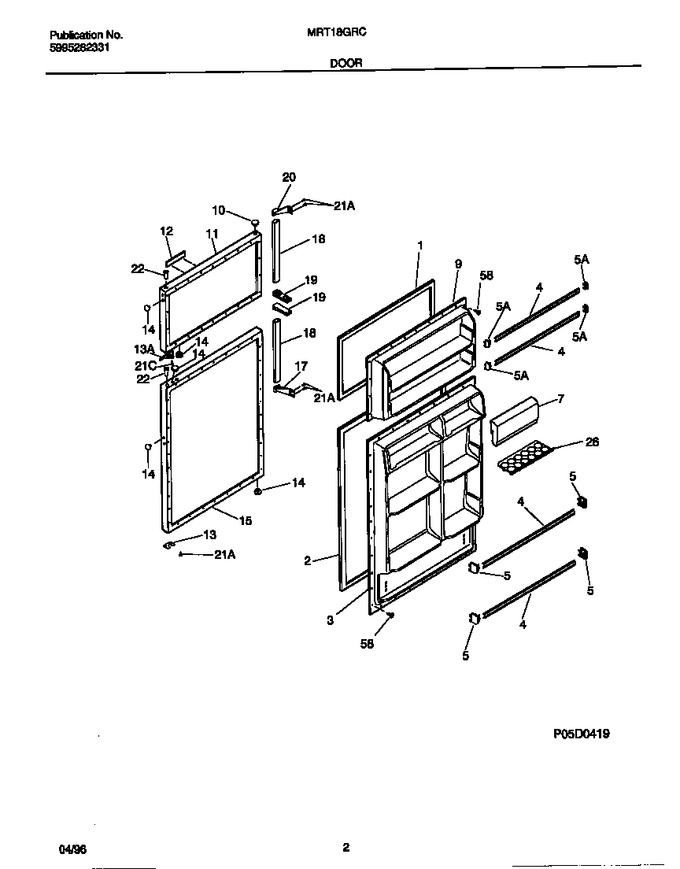

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608916		Gasket-frzr Door, White, Magnetic				$ 258.30
2	5303207345		Gasket-refr Door, White, Magnetic			Immediately	$ 188.19
3	218360001		Panel-inner Door, Refr				$ 453.98
4	215366002		Rack-door,23.81`` X 1.62``   (Replaces: 218027022)			Immediately	$ 65.83
5	215267701		Support-door Rack,``2-liter`` ,rh/lh			Immediately	$ 7.79
5	215473602		Support-door Rack, Rh/lh   (Replaces: 215473601)			Immediately	$ 11.58
9	218360101		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917519		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	215503701		Frame-nameplate, White, W/mtg Tape		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5308000255		Door Stop				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917521		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302990		Handle-door, White				$ 86.15
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
26	215817806		Tray-egg				$ 13.46
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
*22400	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
7A	218287802		Door-dairy, 10.71`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
