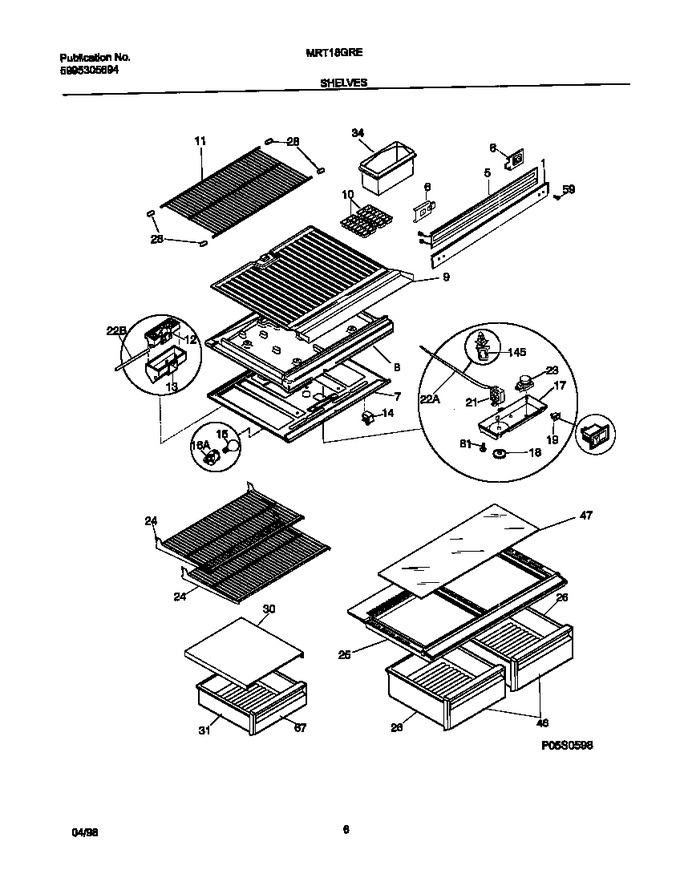

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218874311		Mullion,almond ,1		Appelez-nous	-
5	218781003		ú Heater-mullion				$ 103.79
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	218814800		Top Panel-refr, Hasc		Appelez-nous	-
8	218814600		Divider, Styrofoam		Appelez-nous	-
9	218814700		Bottom Panel-frzr				$ 288.94
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	5303307355		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
30	5303285319		Cover-meat Pan				$ 100.13
31	3206209		Pan-meat				$ 183.70
34	3018945		Container-ice		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303305167		Front-crisper Pan, (2)		Appelez-nous	-
47	5303281398		Insert-pan Cover, Glass				$ 114.29
49	218362501		Screw, Hex Washer Head, 8-18ab X 1-1/4   (Replaces: 218362500)				$ 12.05
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
67	5303309850		Front-meat Pan				$ 86.42
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*02374	3018900		Harness-wiring, Control/divider		Appelez-nous	-
*02375	5303001449		Seal-air Deflector,foam Plastic ,(2)				$ 2.12
*02376	5303001260		Screw				$ 6.73
*02377	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*02378	5304455852		Screw,hex Wshr Hd,8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
81A	5303001380		Screw		Appelez-nous	-
81B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18

    View Diagram in Separate Window       Print Part List
