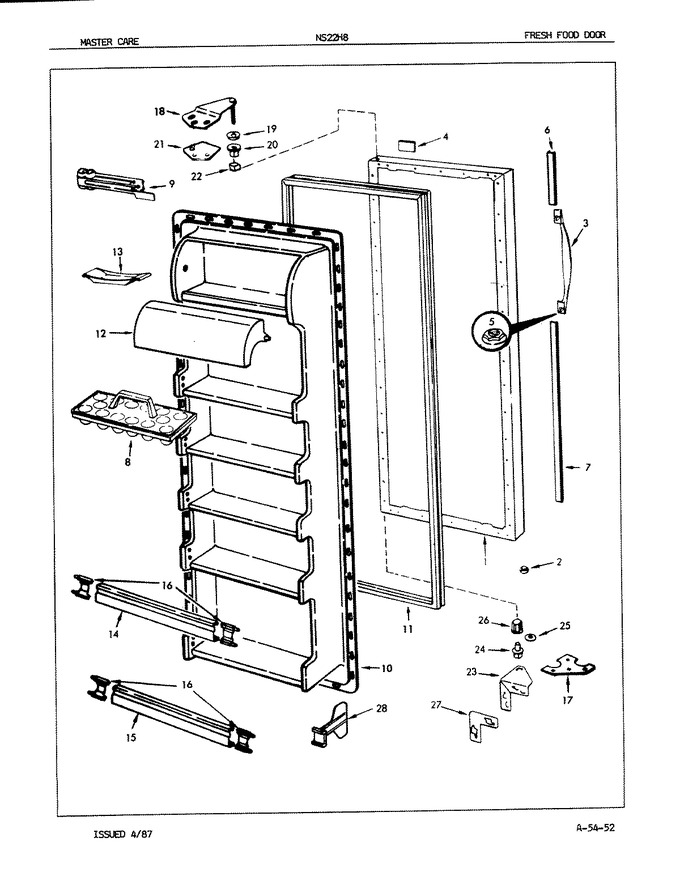

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	RA95060-1		Insulation Kit		Appelez-nous	-
1	62391-15-WW		Panel, Outer Door		Appelez-nous	-
2	495034-900		Plug Button, Door		Appelez-nous	-
3	63686-5		Handle		Appelez-nous	-
4	66724-1		Insert		Appelez-nous	-
4	66612-1		Nameplate		Appelez-nous	-
5	434003-506		Fastener		Appelez-nous	-
8	60066-8		Tray, Egg		Appelez-nous	-
10	65275-5		Screw		Appelez-nous	-
10	65945-7		Liner, Door		Appelez-nous	-
11	66929-14		Gasket		Appelez-nous	-
12	66184-132		Door, Dairy		Appelez-nous	-
13	29936-2		Tray, Butter		Appelez-nous	-
15	WP61003045		Trim, Door Shelf   (Replaces: 65151-207)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
17	65964-1		Tapping Plate, Lower Hinge		Appelez-nous	-
18	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
18	53709-18		Door Hinge, Upper		Appelez-nous	-
19	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
20	66036-1		Bushing,top/center Hinge		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
23	403062-5		Screw		Appelez-nous	-
23	60630-12		Hinge, Lower		Appelez-nous	-
24	53672-1		Pin, Lower Hinge		Appelez-nous	-
25	54233-1		Washer				$ 7.71
26	66034-1		Bushing, Lower Hinge				$ 19.76
27	60626-1		Shim, Lower Hinge		Appelez-nous	-
