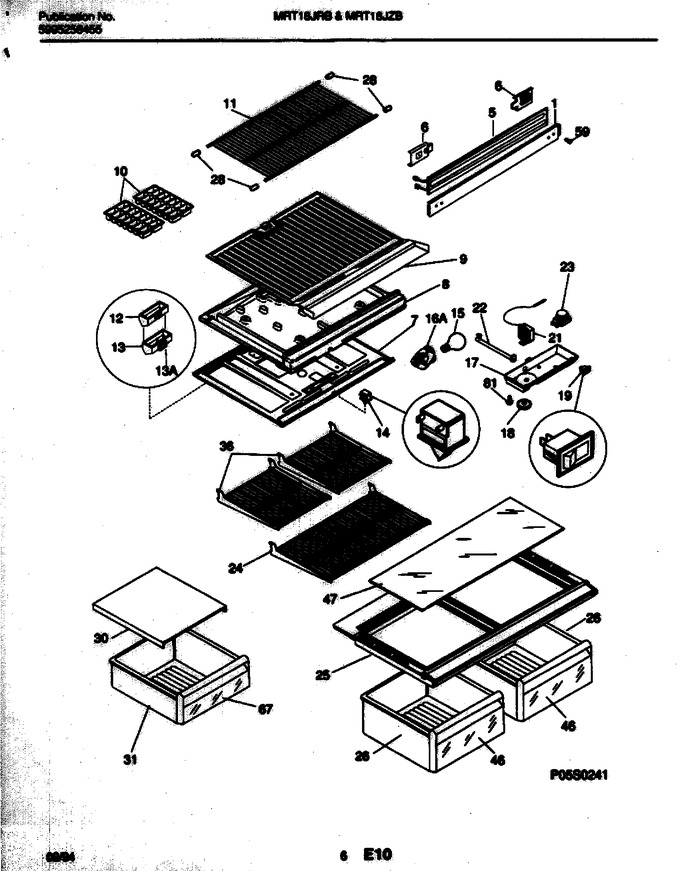

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218222111 | Mullion, Almond |
|
- | |||||
| 6 | 218279800 | Tapping Plate, Mullion Mtg, (2) |
|
- | |||||
| 7 | 5303001380 | Screw |
|
- | |||||
| 7 | 3206454 | Top Panel-refr |
|
- | |||||
| 8 | 3205266 | Protector-edge |
|
$ 80.09 | |||||
| 8 | 3206456 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206455 | Bottom Panel-frzr |
|
- | |||||
| 10 | 215667501 | Tray-ice, Plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288242 | Shelf-freezer |
|
$ 403.31 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 12 | 5303001449 | Seal-air Deflector |
|
$ 2.12 | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5303299980 | Box-control |
|
- | |||||
| 17 | 5308016567 | Nut-anchor |
|
- | |||||
| 18 | 5303299979 | Knob-temp Control |
|
- | |||||
| 21 | 5303001260 | Screw |
|
$ 6.73 | |||||
| 22 | 3018891 | Housing - Control Cap Tube |
|
- | |||||
| 23 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 24 | 5303295595 | Shelf, Cantilever, Full-width, Wire |
|
- | |||||
| 25 | 5303207340 | Cover-crisper Pan, W/beams, Less Insert |
|
$ 265.80 | |||||
| 26 | 3206438 | Pan-crisper |
|
Immediately | $ 227.80 | ||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 30 | 5303207338 | Cover-meat Pan |
|
- | |||||
| 31 | 215742602 | Pan-meat |
|
$ 174.40 | |||||
| 36 | 5303295954 | Shelf, Cantilever, Half-width, Wire, (2) |
|
- | |||||
| 47 | 5303281398 | Insert-pan Cover, Glass |
|
$ 114.29 | |||||
| 50 | 240442708 | Screw-hinge/mullion , 10-32 X 5/8 (Replaces: 218188000) |
|
$ 8.34 | |||||
| 56 | 5303305167 | Front-crisper Pan, (2) |
|
- | |||||
| 67 | 5303305168 | Front-meat Pan |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation |
|
- | |||||
| F14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| F16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| F19 | 5303266905 | Switch-energy Saver |
|
- | |||||
| F21 | 5303018894 | Control-temperature |
|
- | |||||
| F23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| F5 | 218271403 | Heater-mullion |
|
$ 115.07 | |||||
| NI | 3018900 | Harness-wiring, Control/divider |
|
- | |||||
| NI | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| NI | 5300170910 | Clip-cantilever Shelf |
|
$ 2.60 |
