SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System

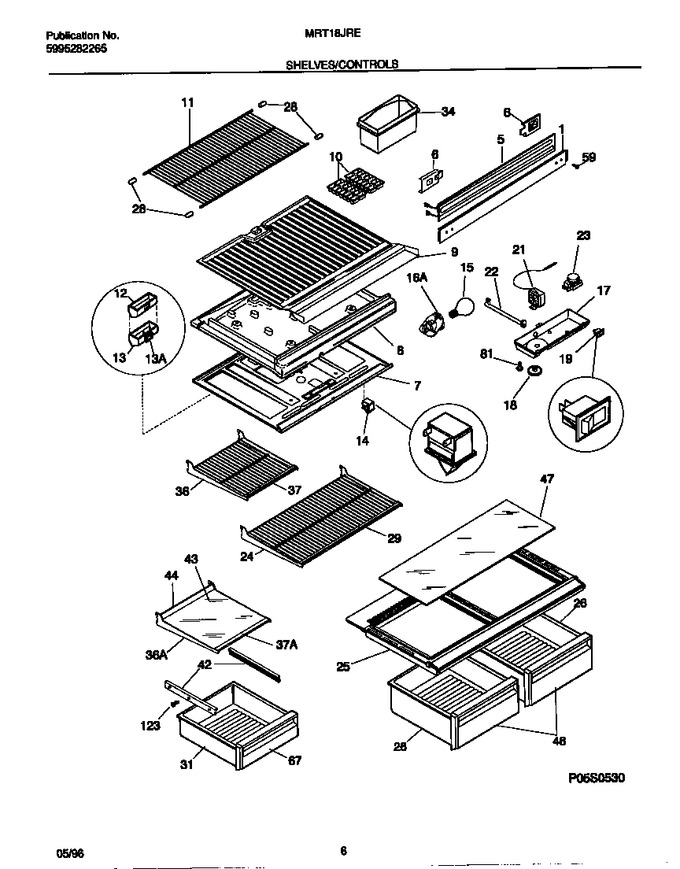

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218430811		Mullion, Almond		Appelez-nous	-
5	218271403		Heater-mullion				$ 115.07
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	3206455		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303288242		Shelf, Freezer, Fixed/flat, Full Width, Wire				$ 403.31
13	218631001		Cover-air Deflector				$ 55.19
13	5303200590		Extension, Air Deflector, For 2-pc Cover		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
24	5303307355		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	5303207340		Cover-crisper Pan, With Beam, Less Insert				$ 265.80
26	3206438		Pan-crisper			Immediately	$ 227.80
28	3201150		End Cap-shelf,protector				$ 4.57
29	215217598		Trim-wire Shelf, 24.92``, Front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	3018945		Container-ice		Appelez-nous	-
36	5303307356		Shelf, Cantilever, Half Width, Wire		Appelez-nous	-
36	215919160		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919409		Trim-glass Shelf, 12.13``, Front		Appelez-nous	-
37	215217599		Trim-wire Shelf, 12.13``, Front		Appelez-nous	-
43	215723594		Glass-shelf, 12.09`` X 14.57``				$ 93.03
44	215919809		Trim-glass Shelf, 12.13``, Rear				$ 35.28
46	5303305167		Front-crisper Pan, (2)		Appelez-nous	-
47	5303281398		Insert-pan Cover, Glass				$ 114.29
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
67	5303305168		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
12A	218630800		Deflector-air		Appelez-nous	-
12B	5303001449		Seal-air Deflector, (2) (not Illustrated)				$ 2.12
17A	5303307349		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303305486		Control-temperature				$ 122.43
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
7A	218597500		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	3206456		Divider, Styrofoam		Appelez-nous	-
8B	3018900		Harness, Wiring, Control/divider (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
