SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Shelves & Accessories


06 - Unit Compartment & System

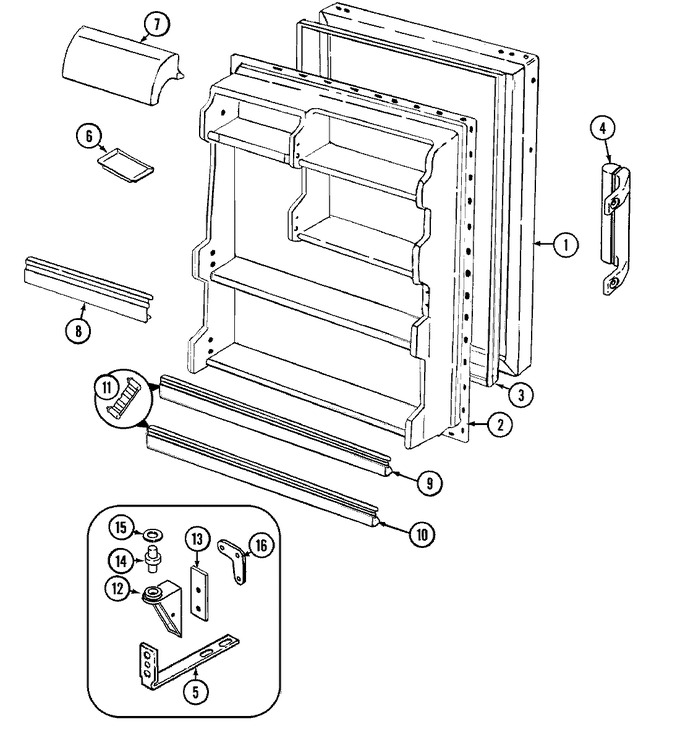

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72349-8-WW		Panel, F.f. Door (wht)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	69443-1		Liner, F.f. Door	10	Appelez-nous	-
3	70025-2		Gasket, F.f. Door	10			$ 139.29
4	69922-1		Plug Button, Handle (wht)	10	Appelez-nous	-
4	69168-4		Handle, Door (wht)	10			$ 69.03
4	65275-60		Screw	10	Appelez-nous	-
5	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
6	29936-2		Tray, Butter	10	Appelez-nous	-
7	69058-2		Door, Dairy	10	Appelez-nous	-
8	WP70111-108		Trim, Shelf   (Replaces: 70111-32)	10		Immediately	$ 104.35
9	WP70111-108		Trim, Shelf   (Replaces: 70111-43)	10		Immediately	$ 104.35
10	WP70111-108		Trim, Shelf (22 11/16``)   (Replaces: 70111-46)	10		Immediately	$ 104.35
11	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
12	403100-1		Screw	10	Appelez-nous	-
12	69516-2		Hinge, Lower (blk)	10	Appelez-nous	-
13	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
14	69845-1		Pin, Lower Hinge	10			$ 44.55
15	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
16	403100-1		Screw	10	Appelez-nous	-
16	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
