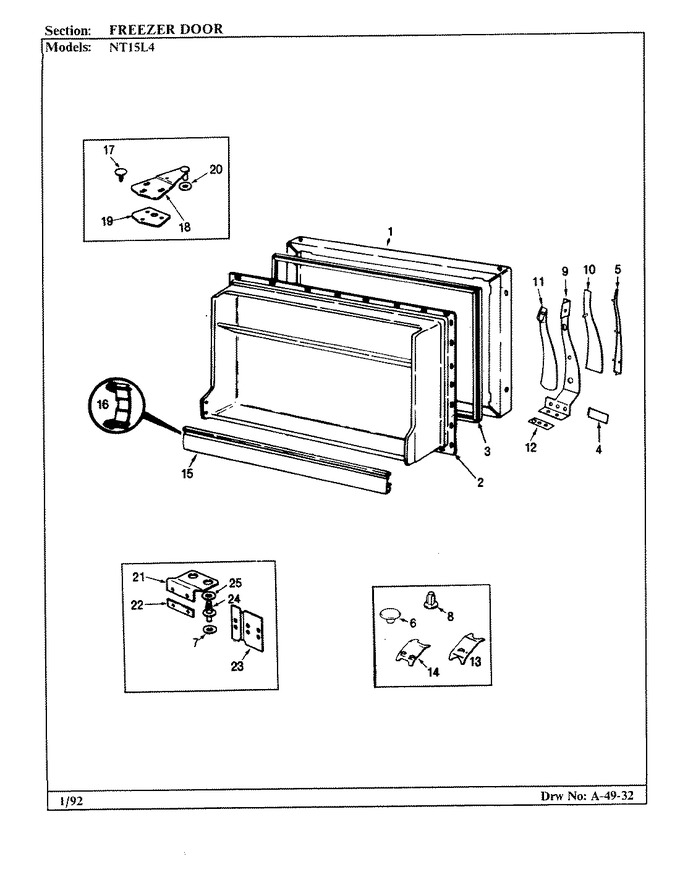

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	68470-1-AM		Panel, Frz. Door (alm)		Appelez-nous	-
1	RA95056-1		Door Insulation Kit		Appelez-nous	-
2	65930-5		Liner, Door		Appelez-nous	-
2	65275-5		Screw		Appelez-nous	-
3	66199-1		Gasket, Door		Appelez-nous	-
4	60603-12		Insert, Handle		Appelez-nous	-
5	68017-1		Insert, Vinyl		Appelez-nous	-
6	67634-3		Plug Button, Hinge Cup (alm)		Appelez-nous	-
6	67634-2		Plug Button, Hinge Cup (wht)		Appelez-nous	-
7	54233-1		Washer				$ 7.71
8	55782-6		Plug Button (almond)		Appelez-nous	-
9	66255-3		Door Handle		Appelez-nous	-
9	9986-122		Screw		Appelez-nous	-
10	68016-1		Insert, Handle		Appelez-nous	-
11	9986-112		Screw		Appelez-nous	-
11	60445-1		Insert		Appelez-nous	-
12	68776-1		Shim Handle----na		Appelez-nous	-
13	56209-3		Clip, Stop Screw		Appelez-nous	-
14	60123-2		Clip, Stop Screw		Appelez-nous	-
15	WP61003045		Trim   (Replaces: 68832-3)				$ 129.55
16	WP65245-1		Retainer, Shelf Trim   (Replaces: 65245-1)				$ 9.39
18	53709-20		Hinge, Upper		Appelez-nous	-
19	65031-1		Shim, Upper Hinge		Appelez-nous	-
20	WP3-24838-048		Screw   (Replaces: 9986-87)				$ 7.00
20	54233-2		Washer		Appelez-nous	-
21	68811-2		Hinge, Center		Appelez-nous	-
22	68812-1		Shim, Center Hinge		Appelez-nous	-
23	68377-1		Tapping Plate, Center Hinge		Appelez-nous	-
23	65275-24		Screw		Appelez-nous	-
24	67322-1		Pin, Center Hinge		Appelez-nous	-
25	67483-1		Washer, Center Hinge (upper)		Appelez-nous	-
