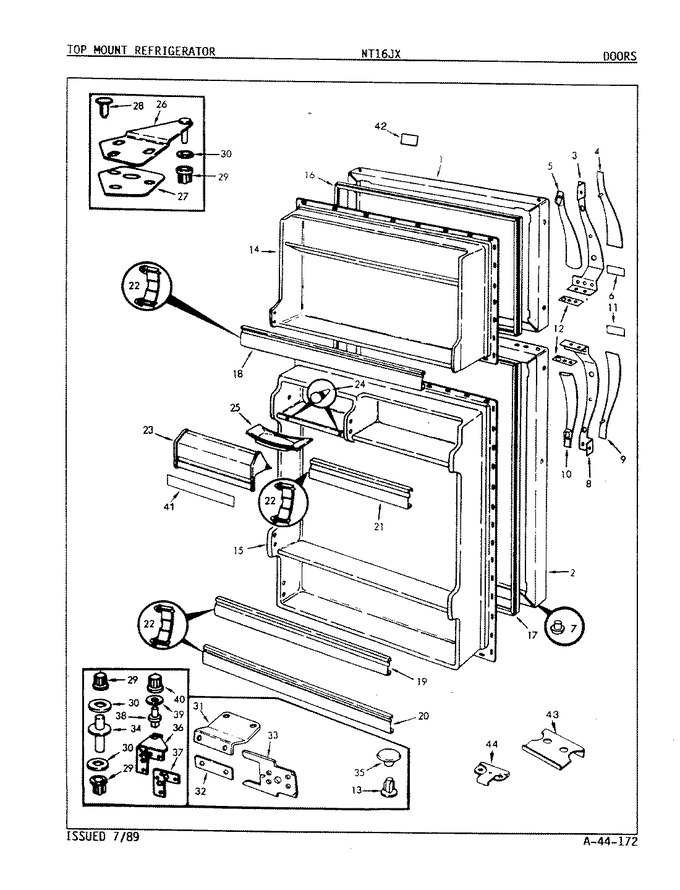

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60033-4-AM | Outer Panel | - |
|
- | ||||
| 2 | RA95056-1 | Door Insulation Kit | - |
|
- | ||||
| 2 | 60032-51-AM | Outer Panel | - |
|
- | ||||
| 3 | 66255-3 | Door Handle | - |
|
- | ||||
| 4 | 68016-1 | Insert, Handle | - |
|
- | ||||
| 5 | 60445-1 | Insert | - |
|
- | ||||
| 5 | 68017-1 | Insert, Vinyl | - |
|
- | ||||
| 6 | 60603-11 | Insert, Handle | - |
|
- | ||||
| 7 | 495042-900 | Plug Button | - |
|
- | ||||
| 8 | 66255-4 | Door Handle | - |
|
- | ||||
| 8 | 9986-122 | Screw | - |
|
- | ||||
| 9 | 68016-2 | Insert, Handle----na | - |
|
- | ||||
| 10 | 60445-1 | Insert | - |
|
- | ||||
| 11 | 68017-1 | Insert, Vinyl | - |
|
- | ||||
| 11 | 60603-11 | Insert, Handle | - |
|
- | ||||
| 11 | 9986-112 | Screw | - |
|
- | ||||
| 12 | 60456-1 | Shim | - |
|
- | ||||
| 13 | 495042-900 | Plug Button | - |
|
- | ||||
| 14 | 65930-7 | Liner, Door | - |
|
- | ||||
| 15 | 65935-8 | Liner, Door | - |
|
- | ||||
| 15 | 65275-5 | Screw | - |
|
- | ||||
| 16 | 66199-1 | Gasket, Door | - |
|
- | ||||
| 17 | 66199-2 | Gasket, Door | - |
|
- | ||||
| 18 | WP61003045 | Trim, Door Shelf (Replaces: 65151-237) | - |
|
$ 129.55 | ||||
| 19 | WP61003045 | Trim, Door Shelf (Replaces: 65151-238) | - |
|
$ 129.55 | ||||
| 20 | WP61003045 | Trim, Door Shelf (Replaces: 65151-237) | - |
|
$ 129.55 | ||||
| 21 | 65151-236 | Trim, Door Shelf | - |
|
- | ||||
| 22 | 60123-2 | Clip, Stop Screw | - |
|
- | ||||
| 22 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | - |
|
$ 9.39 | ||||
| 23 | 60406-38 | Door, Dairy | - |
|
- | ||||
| 24 | 28272-6 | Bumper, Door | - |
|
- | ||||
| 25 | 29936-2 | Tray, Butter | - |
|
- | ||||
| 26 | 53709-18 | Door Hinge, Upper | - |
|
- | ||||
| 27 | 65031-1 | Shim, Upper Hinge | - |
|
- | ||||
| 28 | 56144-9 | Plug Button, Hinge Screw (alm) | - |
|
- | ||||
| 29 | 66036-1 | Bushing,top/center Hinge | - |
|
- | ||||
| 30 | WP3-24838-048 | Screw (Replaces: 9986-87) | - |
|
$ 7.00 | ||||
| 30 | WP52185-1 | Washer (Replaces: 52185-1) | - |
|
Immediately | $ 9.47 | |||
| 31 | 60031-2 | Door Hinge, Center | - |
|
- | ||||
| 32 | 60034-1 | Spacer, Center Hinge | - |
|
- | ||||
| 33 | 60622-1 | Tapping Plate | - |
|
- | ||||
| 33 | WP3-24838-048 | Screw (Replaces: 9986-107) | - |
|
$ 7.00 | ||||
| 34 | 60035-4 | Pin, Center Hinge | - |
|
- | ||||
| 35 | 56186-6 | Plug Button, (almond) | - |
|
- | ||||
| 36 | 403062-5 | Screw | - |
|
- | ||||
| 36 | 60630-8 | Door Hinge, Lower | - |
|
- | ||||
| 37 | 60626-1 | Shim, Lower Hinge | - |
|
- | ||||
| 38 | 53672-1 | Pin, Lower Hinge | - |
|
- | ||||
| 39 | 54233-2 | Washer | - |
|
- | ||||
| 40 | 66034-1 | Bushing, Lower Hinge | - |
|
$ 19.76 | ||||
| 41 | 68128-12 | Insert | - |
|
- | ||||
| 42 | 56209-3 | Clip, Stop Screw | - |
|
- | ||||
| 42 | 68408-1 | Nameplate, Galaxy | - |
|
- | ||||
| 42 | 9986-108 | Screw | - |
|
- | ||||
| 42 | 9986-122 | Screw | - |
|
- | ||||
| 43 | 60030-1 | Door Stop | - |
|
- | ||||
| 44 | 60419-1 | Door Stop | - |
|
- |
