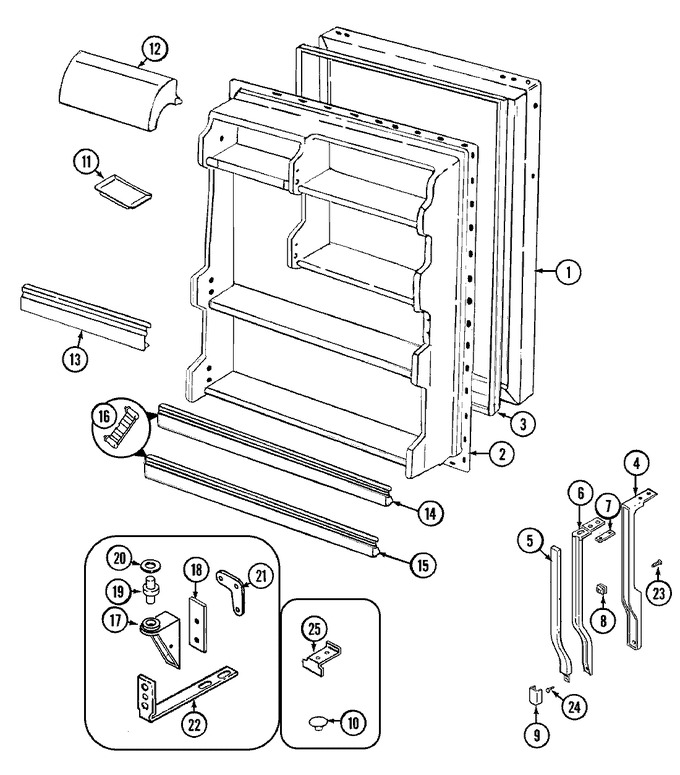

SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit (ice)


06 - Shelves & Accessories


07 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72342-3-AM		Panel, F.f. Door (alm)	10	Appelez-nous	-
2	65275-5		Screw	10	Appelez-nous	-
2	70343-1		Liner, F.f. Door	10	Appelez-nous	-
3	70025-4		Gasket	10			$ 153.02
4	65275-22		Screw	10	Appelez-nous	-
4	70051-4		Handle, F.f. Door (alm)	10	Appelez-nous	-
5	70053-17		Insert, Handle (alm)----na	10	Appelez-nous	-
6	70052-1		Frame, Handle	10	Appelez-nous	-
7	67934-1		Shim, Handle	10	Appelez-nous	-
8	69743-1		Grommet	10	Appelez-nous	-
9	70058-1		End Cap, Handle (alm)	10	Appelez-nous	-
10	69480-4		Plug Button (alm)	10	Appelez-nous	-
11	29936-2		Tray, Butter	10	Appelez-nous	-
12	69058-2		Door, Dairy	10	Appelez-nous	-
13	WP70111-108		Trim, Door   (Replaces: 70111-31)	10		Immediately	$ 104.35
14	WP70111-108		Trim, Shelf   (Replaces: 70111-42)	10		Immediately	$ 104.35
15	WP70111-108		Trim, Shelf   (Replaces: 70111-45)	10		Immediately	$ 104.35
16	70197-1		Retainer, Shelf Trim	10		Immediately	$ 14.18
17	65275-51		Screw, Lower Hinge	10	Appelez-nous	-
17	69516-4		Hinge, Lower (zinc)	10	Appelez-nous	-
18	69510-1		Shim, Lower Hinge	10	Appelez-nous	-
19	69845-1		Pin, Lower Hinge	10			$ 44.55
20	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)	10		Immediately	$ 45.86
21	65275-59		Screw	10	Appelez-nous	-
21	67874-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	69511-1		Tapping Plate, Lower Hinge	10	Appelez-nous	-
22	414012-1		Screw	10	Appelez-nous	-
22	65275-66		Screw (no.10 X 1/2``)	10	Appelez-nous	-
23	415033-1		Screw	10	Appelez-nous	-
24	67678-3		Plug Button, Handle Top (alm)	10	Appelez-nous	-
24	W10856122		Screw   (Replaces: 65275-80)	10			$ 6.98
25	69256-2		Stop, Door	10	Appelez-nous	-
25	68978-3		Cover, Lower Hinge (alm)	10	Appelez-nous	-
