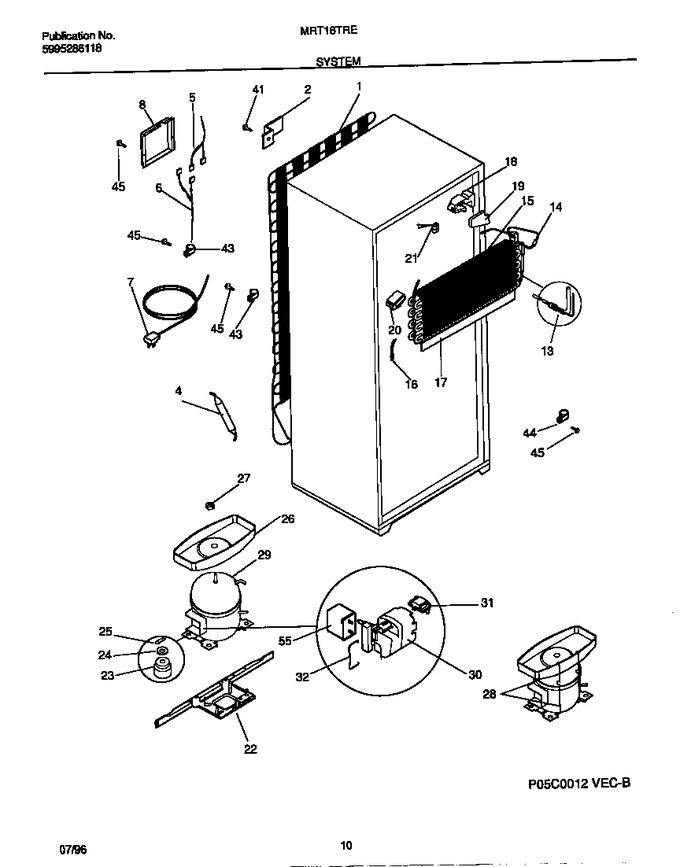

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218173900		Condenser		Appelez-nous	-
4	5303305677		Drier-filter   (Replaces: 218541000)			Immediately	$ 31.67
5	3018900		Harness-wiring, Control/divider		Appelez-nous	-
6	215257003		Harness-wiring, Compressor		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	218429300		Heat Exchanger, Suction Line		Appelez-nous	-
14	3206453		Heater-defrost				$ 268.46
15	3206452		Evaporator		Appelez-nous	-
16	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
17	5303207493		Insulator-evap, Plastic				$ 27.51
18	5308013648		Insulation Block, Rh		Appelez-nous	-
19	5303007287		Insulation Plug, Rh		Appelez-nous	-
20	5308017227		Insulation Block, Lh		Appelez-nous	-
21	5303917954		Thermostat-defrost   (Replaces: 5316269001)			Immediately	$ 30.47
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	5304478809		Compressor, R134a, W/ovld & Drier   (Replaces: 5303917694)			Immediately	$ 584.96
30	216008900		Starter-ptc		Appelez-nous	-
31	5303299560		Overload Protector		Appelez-nous	-
32	215012000		Wire-bale				$ 2.63
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
55	5304464438		Capacitor-run   (Replaces: 216236200)			Immediately	$ 35.38
*67926	3916557		Hot Tube Repair Kit, Service				$ 360.78
22A	3206126		Plate-compr Mtg, With Rail		Appelez-nous	-
22B	3051070		Screw, Hex Washer Head, 10-24 X 7/16, Special (not Illustrated)		Appelez-nous	-
26A	215372500		Pan, Defrost Drain		Appelez-nous	-
26B	5308017610		Sound Tape, Defrost Pan (not Illustrated)		Appelez-nous	-
2A	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
2B	5308009617		Washer, Ext Tooth Lock, No. 10 (not Illustrated)		Appelez-nous	-
45A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
45B	5300141713		Screw-clamp Mtg, Hex Washer Head, 8-32 X 0.625, Special		Appelez-nous	-
