SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Optional Ice Maker Kit


06 - Shelves & Accessories


07 - Unit Compartment & System

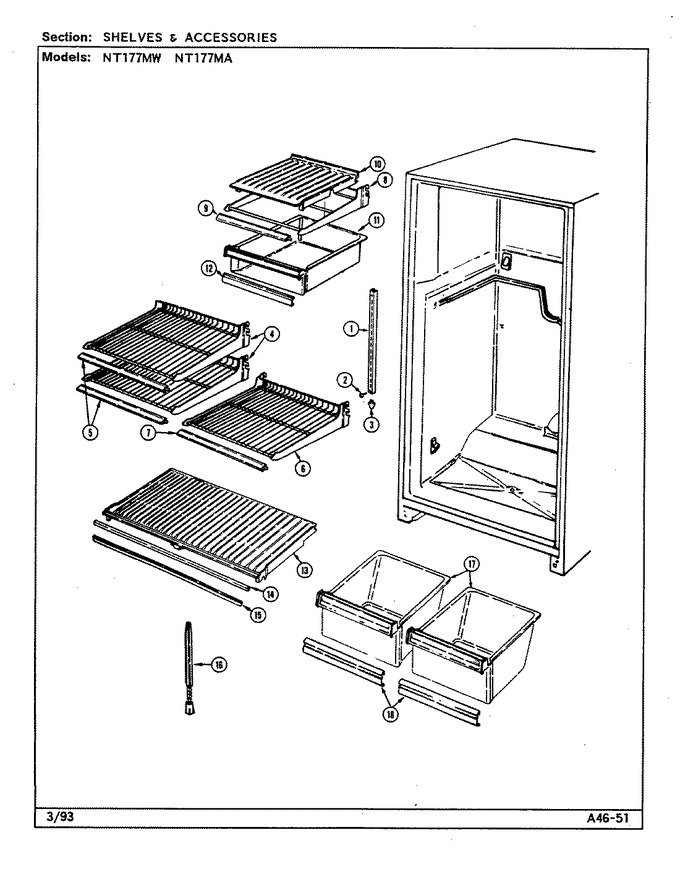

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)	11	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	11	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	11	Appelez-nous	-
2	400037-28		Screw	11	Appelez-nous	-
3	60340-1		End Cap, Center Rail	11	Appelez-nous	-
4	60417-20		Shelf, Split	11	Appelez-nous	-
5	60414-39		Trim	11	Appelez-nous	-
6	60417-19		Shelf, Split	11	Appelez-nous	-
7	60414-62		Trim	11	Appelez-nous	-
8	60416-13		Shelf, Meat	11	Appelez-nous	-
9	60414-62		Trim	11	Appelez-nous	-
10	60075-7		Cover, Meat Pan	11	Appelez-nous	-
11	66524-21		Pan, Meat	11	Appelez-nous	-
12	66230-10		Handle	11	Appelez-nous	-
13	66834-1		Shelf, Crisper	11	Appelez-nous	-
14	60454-9		Trim, Crisper Shelf	11	Appelez-nous	-
15	60148-4		Seal, Crisper Shelf	11	Appelez-nous	-
16	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	11			$ 3.35
17	68221-642		Pan, Crisper	11	Appelez-nous	-
18	66230-8		Trim	11	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
