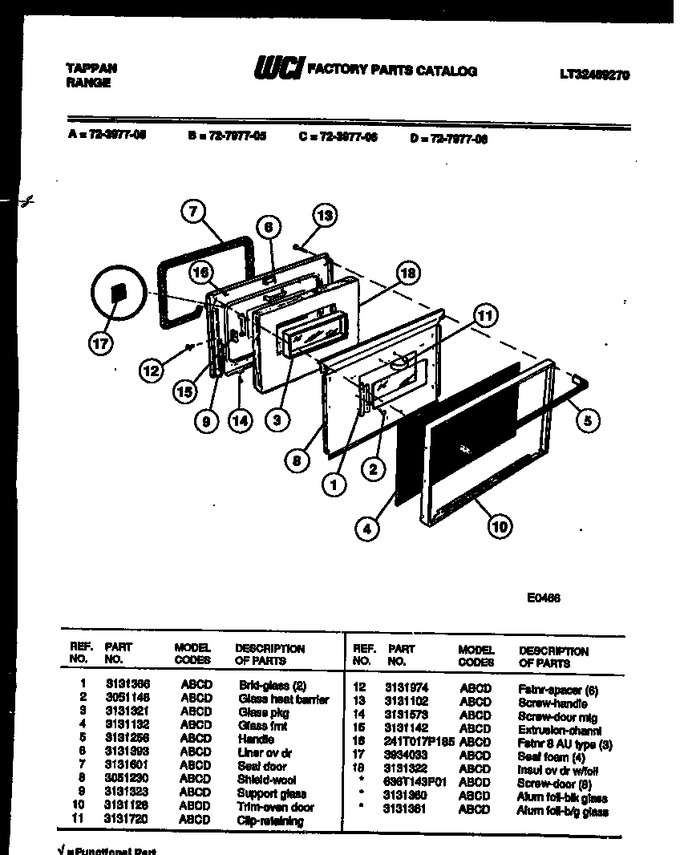

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131366		Brkt Glass (2)		Appelez-nous	-
2	3051148		Glass, Heat Barrier		Appelez-nous	-
3	3131321		Glass Pkg		Appelez-nous	-
4	3131132		Glass Frnt		Appelez-nous	-
5	3131256		Handle		Appelez-nous	-
6	3131393		Liner Ov Dr		Appelez-nous	-
7	3131601		Seal, Door		Appelez-nous	-
8	3051230		Shield, Wool		Appelez-nous	-
9	3131323		Support, Glass		Appelez-nous	-
10	3131128		Trim, Oven Door		Appelez-nous	-
11	3131720		Clip-retaining		Appelez-nous	-
12	3131974		Fstnr. Spacer (6)		Appelez-nous	-
13	3131102		Screw-handle		Appelez-nous	-
14	3131573		Screw Door Mtg		Appelez-nous	-
15	3131142		Extrusion-channl		Appelez-nous	-
16	241T017P185		Fstnr 8au Type (3)		Appelez-nous	-
17	3934033		Seal, Foam (4)		Appelez-nous	-
18	3131322		Insul Ov Dr W/foil		Appelez-nous	-
*15130	636T143P01		Screw		Appelez-nous	-
*15131	3131361		Alum Foil-b/g Glass		Appelez-nous	-
*15131	3131360		Alum Foil Blk Glass		Appelez-nous	-
