SELECT A DIAGRAM
01 - Freezer Compartment
02 - Freezer Door
03 - Fresh Food Compartment
04 - Fresh Food Door
05 - Optional Ice Maker
06 - Shelves & Accessories
07 - Unit Compartment & System
SELECT A DIAGRAM
New Model Search:

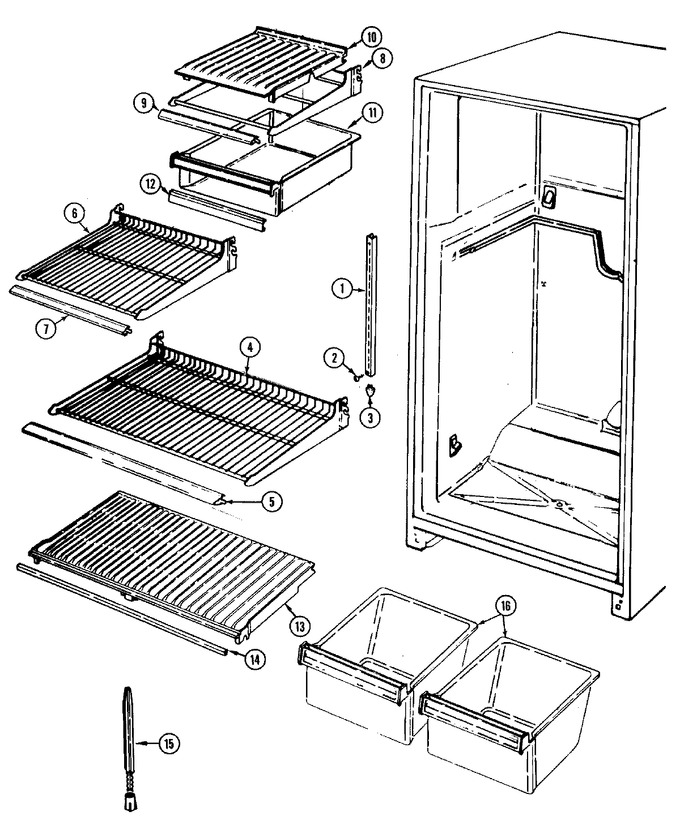

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 60096-7 | Rail, Shelf Support (lt) | 10 |
|
- | ||||
| 1 | 60096-8 | Rail, Shelf Support (rt) | 10 |
|
- | ||||
| 1 | 60096-9 | Rail, Shelf Support (center) | 10 |
|
- | ||||
| 2 | 400037-28 | Screw | 10 |
|
- | ||||
| 3 | 60340-1 | End Cap, Center Rail | 10 |
|
- | ||||
| 4 | 70105-4 | Shelf, Full | 10 |
|
- | ||||
| 5 | 70109-5 | Trim, Shelf | 10 |
|
- | ||||
| 6 | 70105-1 | Shelf, Split | 10 |
|
- | ||||
| 7 | 70109-1 | Trim, Shelf | 10 |
|
- | ||||
| 8 | 70105-2 | Frame, Meat Shelf | 10 |
|
- | ||||
| 9 | 70108-2 | Trim, Meat Pan (frt.) | 10 |
|
- | ||||
| 10 | 68139-21 | Glass, Meat Shelf | 13 |
|
- | ||||
| 10 | 60075-1 | Cover | 10 |
|
- | ||||
| 11 | 66636-120 | Pan, Meat | 10 |
|
- | ||||
| 12 | 70315-3 | Trim, Meat Pan | 10 |
|
- | ||||
| 13 | 66834-1 | Shelf, Crisper | 10 |
|
- | ||||
| 14 | 60454-9 | Trim, Crisper Shelf | 10 |
|
- | ||||
| 15 | 12001957 | Support, Crisper Shelf (Replaces: 66105-1) | 10 |
|
$ 3.35 | ||||
| 16 | 68221-641 | Pan, Crisper | 10 |
|
- |
