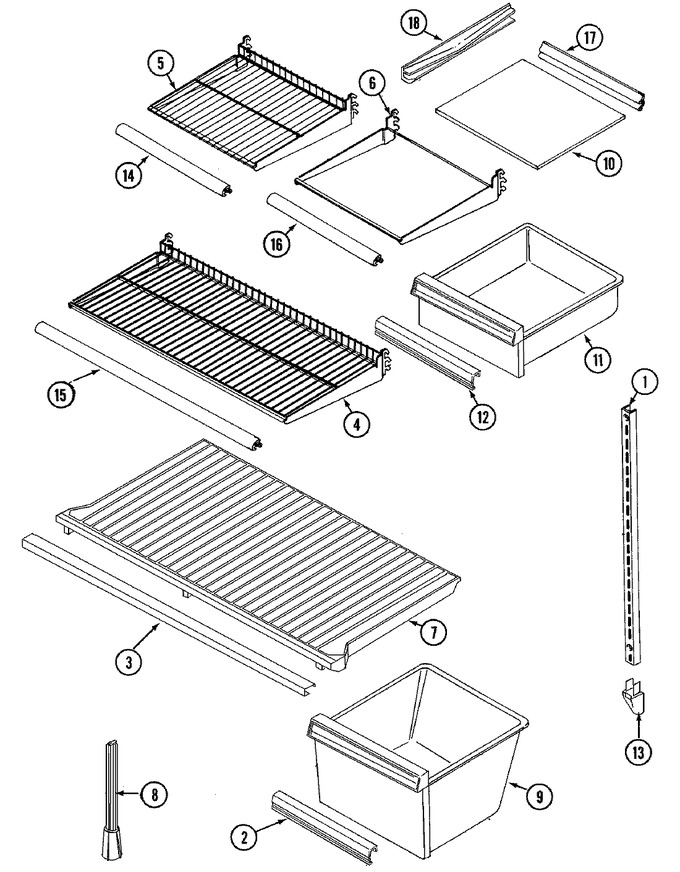

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	60096-8		Rail, Shelf Support (rt)	11	Appelez-nous	-
1	60096-9		Rail, Shelf Support (center)	11	Appelez-nous	-
1	400037-28		Screw	11	Appelez-nous	-
1	60096-7		Rail, Shelf Support (lt)	11	Appelez-nous	-
2	70315-2		Trim, Pan Handle	11	Appelez-nous	-
3	61001522		Trim, Crisper Shelf	11	Appelez-nous	-
4	70105-4		Shelf, Full	11	Appelez-nous	-
5	70105-1		Shelf, Split	11	Appelez-nous	-
6	70106-2		Frame, Split Shelf	11	Appelez-nous	-
7	61001583		Shelf, Crisper (w/trim)	11	Appelez-nous	-
8	12001957		Support, Crisper Shelf   (Replaces: 66105-1)	11			$ 3.35
9	68221-641		Pan, Crisper	11	Appelez-nous	-
10	68139-21		Glass, Meat Shelf	11	Appelez-nous	-
11	66636-120		Pan, Meat	11	Appelez-nous	-
12	70315-3		Trim, Meat Pan	11	Appelez-nous	-
13	60340-1		End Cap, Center Rail	11	Appelez-nous	-
14	61001642		Trim, Shelf	11	Appelez-nous	-
15	61001650		Trim, Shelf	11	Appelez-nous	-
16	70108-2		Trim, Meat Pan (frt.)	11	Appelez-nous	-
17	70110-2		Trim, Split Shelf (rear)	11	Appelez-nous	-
18	66813-1		Rail, Meat Pan (lt)	11	Appelez-nous	-
18	66814-1		Rail, Meat Pan (rt)	11	Appelez-nous	-
