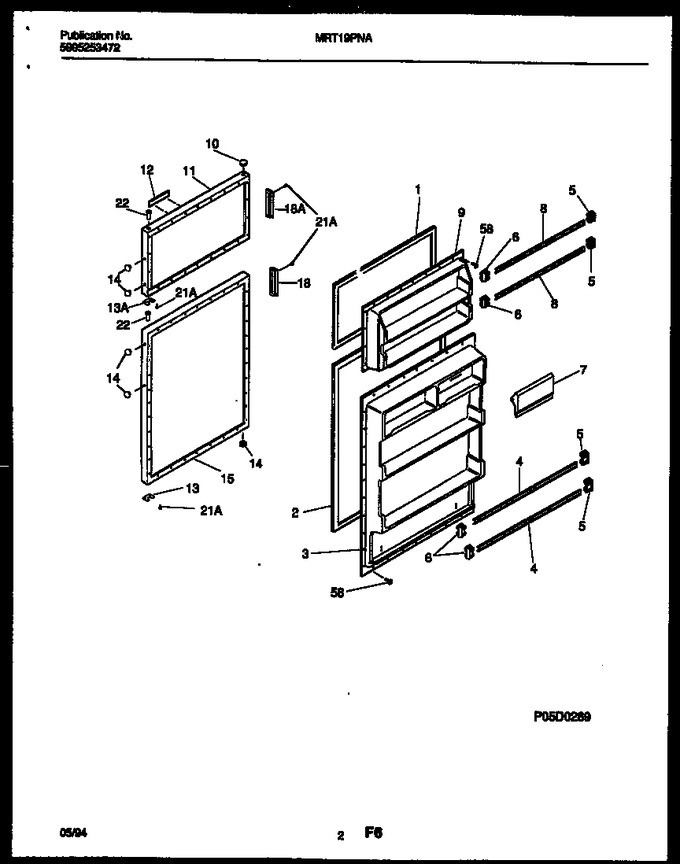

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, White, Magnetic |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 5303206569 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281387 | Rack-door, 25.25`` X 1.58`` |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh |
|
$ 64.58 | |||||
| 7 | 5303303599 | Door Dairy |
|
- | |||||
| 8 | 5303288345 | Rack-door, 25.06`` X 1.58`` |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 3916578 | Panel-frzr Door, White, W/ Insulation |
|
- | |||||
| 12 | 215366301 | Frame - Nameplate,white |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 3916583 | Panel-refr Door, White, W/ Insul & Brace |
|
- | |||||
| 18 | 5303273079 | Handle-door, White |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *10159 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 18A | 5303273081 | Handle-door, White |
|
- | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
