02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - System And Automatic Defrost Parts

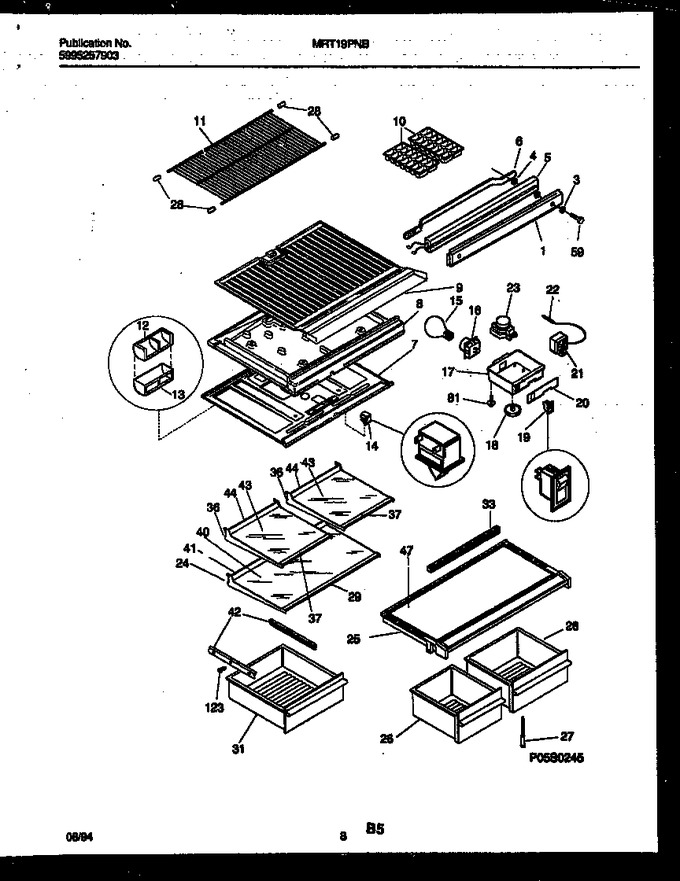

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200370		Mullion, Almond		Appelez-nous	-
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	218188100		Spacer-mullion Mtg, (2)		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	5303016367		Top Panel-refr, W/snap Bushing		Appelez-nous	-
8	5303001504		Divider, Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303283031		Shelf-freezer, Fixed/flat, Full Width, Wire				$ 120.59
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
17	5303015152		Box-control		Appelez-nous	-
18	5303300067		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver		Appelez-nous	-
20	215611400		Label-control Box		Appelez-nous	-
21	5303200810		Control-temperature				$ 126.87
22	5303916855		Sleeve-plastic Tube				$ 60.96
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	215919107		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303206606		Cover-crisper Pan		Appelez-nous	-
26	215791924		Pan-crisper		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	215919504		Trim-shelf, 26.12``, Front		Appelez-nous	-
31	5303304512		Pan-meat		Appelez-nous	-
33	5303200329		Gasket-pan Cover, 13.25``, Rh		Appelez-nous	-
36	215919106		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919510		Trim-shelf, 12.59``, Front		Appelez-nous	-
40	215723545		Glass-shelf, 26.08`` X 15.57``		Appelez-nous	-
41	215919804		Trim-shelf, 26.12``, Rear		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
43	215723544		Glass-shelf, 12.55`` X 15.57``		Appelez-nous	-
44	215919810		Trim-shelf, 12.59``, Rear		Appelez-nous	-
47	5303209283		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
25A	5303280075		Trim, Crisper Cover (non-illustrated)		Appelez-nous	-
26A	5303304670		Pan-crisper, Rh		Appelez-nous	-
42A	5303209273		Hanger-pan/basket, Rh (non-illustrated)				$ 60.06
7A	5303001380		Screw		Appelez-nous	-
7B	5303212518		Bushing, Snap-in, Plastic (non-illustrated)		Appelez-nous	-
8A	3001383		Harness-wiring, Control/divider,(non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
