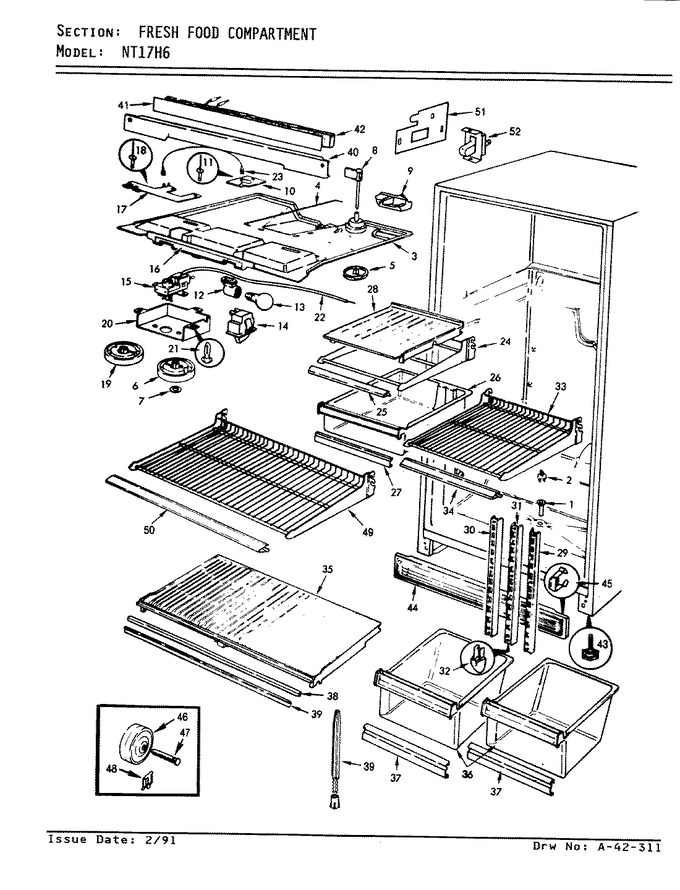

SELECT A DIAGRAM

01 - Doors


02 - Freezer Compartment


03 - Fresh Food Compartment


04 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	54531-8		Grommet		Appelez-nous	-
2	65039-1		Cap, Drain Tube		Appelez-nous	-
3	60085-51		Top, F.f. Compartment		Appelez-nous	-
4	60078-3		Rod		Appelez-nous	-
5	60082-3		Crank, Frzr Control		Appelez-nous	-
6	60061-3		Knob		Appelez-nous	-
6	W11233072		Screw   (Replaces: 405016-103)			Immediately	$ 12.62
7	420092-900		Washer, Spring		Appelez-nous	-
8	66609-1		Damper		Appelez-nous	-
9	60120-2		Deflector		Appelez-nous	-
10	60147-2		Bracket, Light Socket		Appelez-nous	-
11	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
12	60577-1		Socket, Light		Appelez-nous	-
13	31956-0		Bulb, Light		Appelez-nous	-
14	54653-28		Cord, Switch/light		Appelez-nous	-
14	W11384469		Switch, Light   (Replaces: 55732-1)			Immediately	$ 33.51
15	WP68601-6		Control, Temperature   (Replaces: 66545-1)			Immediately	$ 233.80
15	406013-1		Screw		Appelez-nous	-
16	60571-46		Insert		Appelez-nous	-
17	60147-1		Bracket, Control		Appelez-nous	-
17	29675-22		Ground Wire		Appelez-nous	-
18	WP210720		Rivet   (Replaces: 26397-2)				$ 12.14
19	60061-1		Knob		Appelez-nous	-
20	405012-1		Screw		Appelez-nous	-
20	60083-1		Cover, Temperature Control		Appelez-nous	-
21	28013-2		Rivet, Air Tunnel		Appelez-nous	-
22	4008-12		Plastic Tube		Appelez-nous	-
23	29675-28		Ground Wire		Appelez-nous	-
24	60416-9		Cantilever Shelf (meat)		Appelez-nous	-
25	60414-4		Trim		Appelez-nous	-
26	66636-16		Pan, Storage		Appelez-nous	-
27	60132-83		Handle		Appelez-nous	-
28	60075-1		Cover		Appelez-nous	-
29	60096-9		Rail, Shelf Support (center)		Appelez-nous	-
30	60096-7		Rail, Shelf Support (lt)		Appelez-nous	-
31	60096-8		Rail, Shelf Support (rt)		Appelez-nous	-
31	400037-28		Screw		Appelez-nous	-
32	60340-1		End Cap, Center Rail		Appelez-nous	-
33	60417-13		Cantilever Shelf (split)		Appelez-nous	-
34	60414-36		Trim		Appelez-nous	-
35	66644-1		Shelf, Crisper		Appelez-nous	-
36	60457-475		Pan, Crisper		Appelez-nous	-
37	60132-80		Handle		Appelez-nous	-
38	60454-1		Trim		Appelez-nous	-
39	12001957		Support, Crisper Shelf   (Replaces: 66105-4)				$ 3.35
40	65797-1-AM		Divider, Mullion (alm)		Appelez-nous	-
40	9986-117		Screw		Appelez-nous	-
40	60560-1		Wire Harness		Appelez-nous	-
41	60105-7		Heater Wire		Appelez-nous	-
42	60140-1		Insulation		Appelez-nous	-
43	W11117769		Leg, Leveling   (Replaces: 6012-8)			Immediately	$ 16.61
44	60138-6		Kickplate		Appelez-nous	-
45	WP489478		Screw   (Replaces: 400017-1)				$ 6.98
45	60100-1		Clip, Kickplate				$ 5.85
46	29834-2		Wheel		Appelez-nous	-
47	29835-2		Pin, Wheel		Appelez-nous	-
48	60216-1		Clip		Appelez-nous	-
49	60417-5		Shelf		Appelez-nous	-
50	60414-1		Trim		Appelez-nous	-
51	60583-1		Bracket, Switch		Appelez-nous	-
52	60585-1		Switch, Mullion Heater		Appelez-nous	-
52	402013-1		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
