SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet

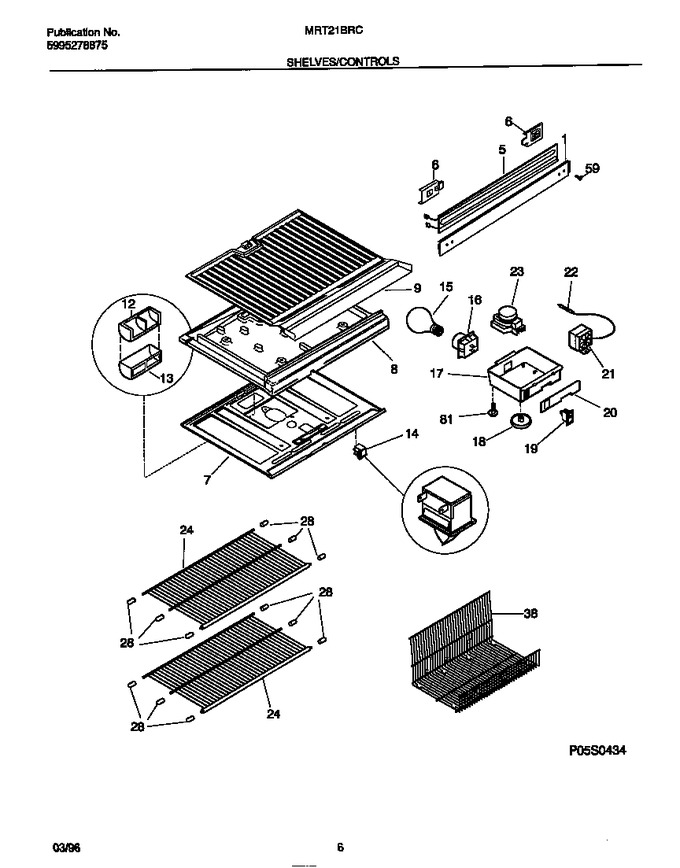

04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651900		Mullion, White		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
12	5308000071		Deflector-air		Appelez-nous	-
13	5303001546		Cover - Air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	5308000129		Socket-light/lamp				$ 62.16
18	5303313909		Knob-temp Control		Appelez-nous	-
19	5303001670		Switch-energy Saver, Slide Type		Appelez-nous	-
20	218459901		Label-control Box		Appelez-nous	-
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
24	215105801		Shelf, Fixed, Full Width, Wire, Refr Section		Appelez-nous	-
28	3201150		End Cap-shelf,protector				$ 4.57
38	5303297857		Trivet		Appelez-nous	-
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
*23765	218159700		Spacer-shelf		Appelez-nous	-
17A	5303015152		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303200810		Control-temperature				$ 126.87
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
7A	5303001651		Top Panel-refr, W/snap Bushing		Appelez-nous	-
7B	5303212518		Bushing, Snap-in, Plastic (not Illustrated)		Appelez-nous	-
7C	5303001380		Screw		Appelez-nous	-
8A	5308013674		Divider-styrofoam		Appelez-nous	-
8B	3001475		Harness-wiring, Control/divider (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
