SELECT A DIAGRAM

01 - Cover

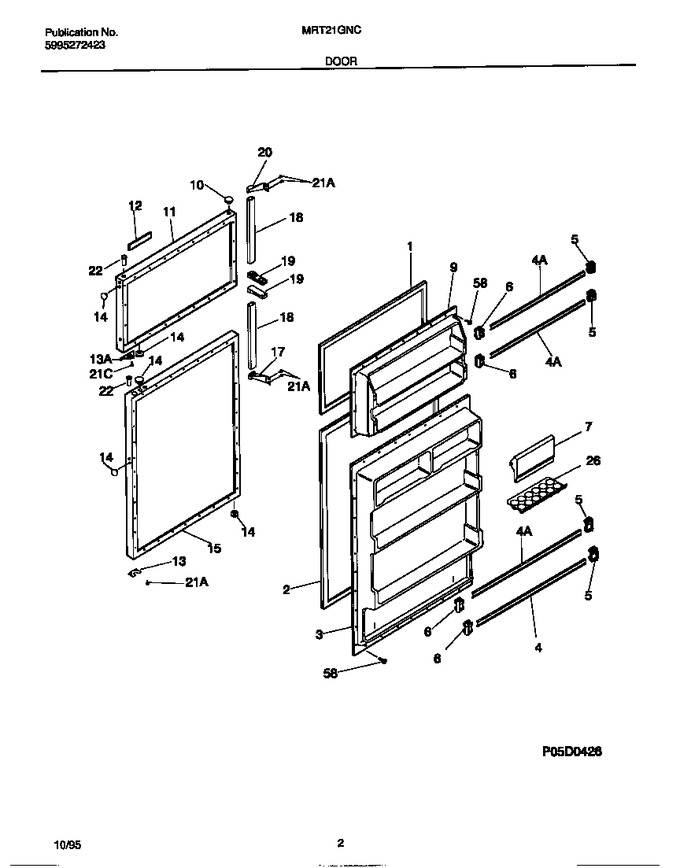

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732403		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303212482		Panel-inner Door, Refr		Appelez-nous	-
4	5303281388		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
4	5303281387		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303303599		Door Dairy		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917518		Panel, Frzr Door, Almond		Appelez-nous	-
12	215366311		Frame - Nameplate, Almond		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917516		Panel, Refr Door, Almond		Appelez-nous	-
17	5303001015		Handle End				$ 74.29
18	5303302991		Handle Door, Almond		Appelez-nous	-
19	218217401		Handle End, (2)		Appelez-nous	-
20	5303001014		Handle End		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*40280	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
